Product Details:
|
| Model Number: | TGS5141 | Target Gases: | Carbon Monoxide |
|---|---|---|---|
| Typical Detection Range: | 0 ~ 5,000ppm | Output Current In CO: | 1.2~3.2nA/ppm |
| Baseline Offset(*1): | <±10ppm Equivalent | Operating Temperature: | -10˚C ~ +50˚C (continuous) -20˚C ~ +60˚C (intermittent) |
| Highlight: | High Selectivity Carbon Monoxide Gas Sensor,Residential Carbon Monoxide Gas Sensor |
||

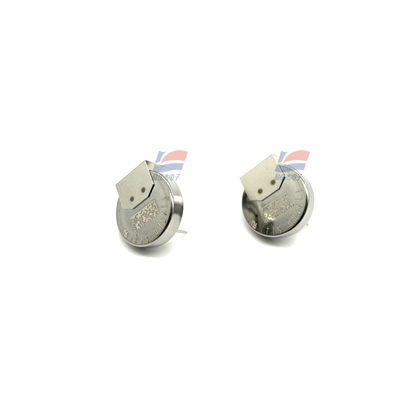

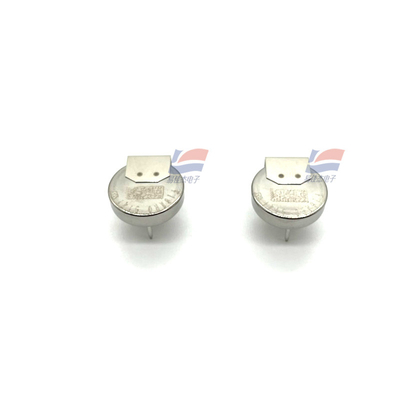

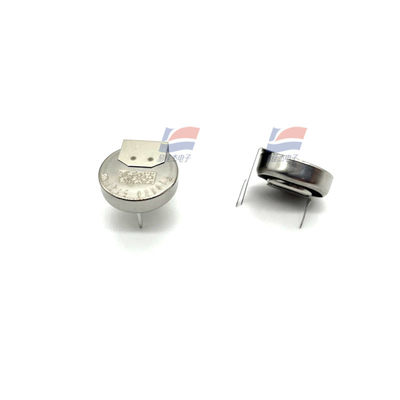

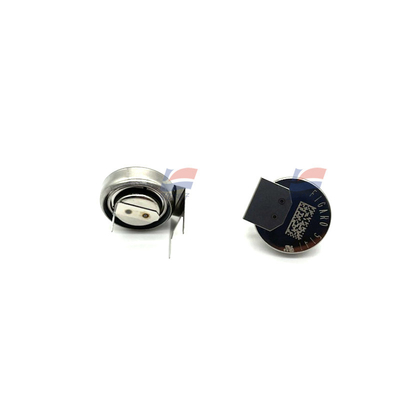

TGS5141 - for the detection of Carbon Monoxide
Features:
* Ultra compact
* Battery operable
* High repeatability/selectivity to CO
* Linear relationship between CO gas concentration and sensor output
* Simple calibration
* Long life
* UL recognized component
* Meets UL2034, EN50291, and EN54-31 requirements
Applications:
* Residential and commercial CO detectors
* Fire detection
Figaro’s TGS5141 is a battery operable electrochemical sensor which uses a unique electrolyte that eliminates the need for a water reservoir. By eliminating the water reservoir used in TGS5042, the comparative size of TGS5141 is reduced to just 10% of TGS5042. With its ultra compact size, this sensor is the ideal choice for size oriented applications such as portable CO detectors, small residential CO detectors, and multi-sensor fire detectors. OEM customers will find individual sensors data printed on each sensor in bar code form, enabling users to skip the costly gas calibration process and allowing for individual sensor tracking.
The figure below represents typical sensitivity characteristics, all data having been gathered at standard test conditions (see reverse side of this sheet). The Y-axis shows theoutput current of the sensor (Iout/μA) in each gas. Output current is linear to CO concentration, with a deviation of less than ±5% in the range of 0~500ppm.
| Operating humidity | 10 ~ 95%RH (no condensation) |
| Response time (T90) | within 60 seconds |
| Storage conditions | -10˚C ~ +50˚C (continuous) -20˚C ~ +60˚C (intermittent) |
