Product Details:
|
| Model Number: | TGS5342 | Target Gases: | Carbon Monoxide |
|---|---|---|---|
| Typical Detection Range: | 0 ~ 10,000ppm | Output Current In CO: | 0.7~1.4nA/ppm |
| Baseline Offset(*1): | <±10ppm Equivalent | Operating Temperature(*2,*3): | 0˚C ~ +50˚C (continuous) -5˚C ~ +55˚C (intermittent) |
| Highlight: | Commercial Gas Sensor,Residential Gas Sensor,Compact Size Gas Sensor |
||

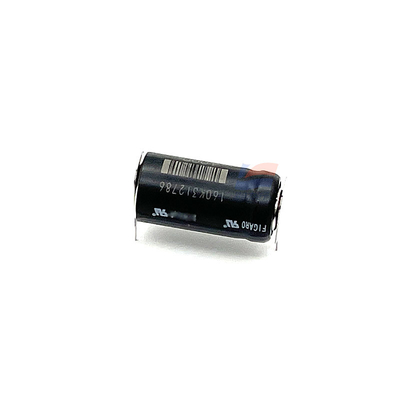

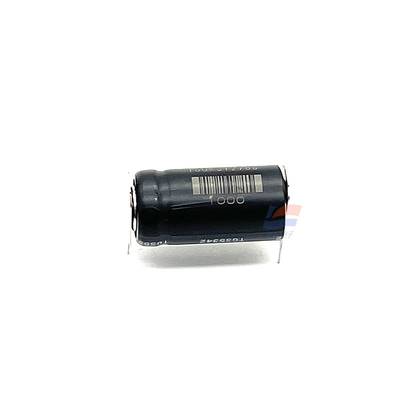

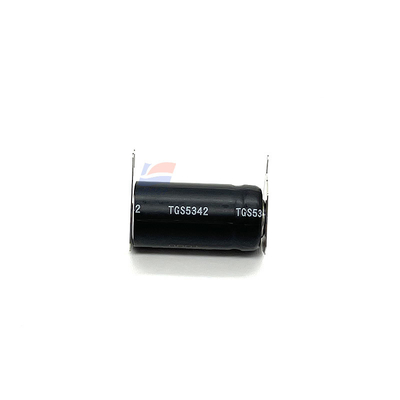

TGS5342 - for the detection of Carbon Monoxide
Features:
* Battery operable
* Compact size
* High repeatability/selectivity to CO
* Linear relationship between CO gas concentration and sensor output
* Simple calibration
* Long life
* UL recognized component
* Meets UL2034, EN50291, and RoHS requirements
Applications:
* Residential and commercial CO detectors
* CO monitors for industrial applications
* Ventilation control for indoor parking garages
* Fire detection
Figaro’s TGS5342 is a battery operable electrochemical sensor which offers several advantages over traditional electrochemical sensors. Its electrolyte is environmentally friendly, it poses no risk of electrolyte leakage, can detect concentrations as high as 1% CO, operates in a range from -5˚ and +55˚C, and it has lower sensitivity to interferant gases. With a long life, good long term stability, and high accuracy, this sensor is the ideal choice for CO detectors with digital display. OEM customers will find individual sensors data printed on each sensor in bar code from, enabling users to skip the costly gas calibration process and allowing for individual sensor tracking. The length of TGS5342 is 60% of the TGS5042.
The figure below represents typical sensitivity characteristics, all data having been gathered at standard test conditions (see reverse side of this sheet). The Y-axis shows theoutput current of the sensor (Iout/μA) in each gas. Output current is linear to CO concentration, with a deviation of less than ±5% in the range of 0~500ppm.
| Operating humidity | 5 ~ 99%RH (no condensation) |
| Response time (T90) | within 60 seconds |
| Storage conditions(*2,*3) | -5˚C ~ +55˚C |
| Weight | Weight |
