Product Details:
|
| Detection Principle: | Catalytic Combustion Type | Object Gas: | Methane |
|---|---|---|---|
| Typical Detection Range: | 0 To 100%LEL | Operating Voltage: | 1.80±0.05V AC/DC |
| Heater Current: | 180mA (typical) | Heater Power Consumption: | 324mW (typical) |
| Highlight: | Very sensitive to methane gas sensor,Methane gas sensor TGS6814 |
||

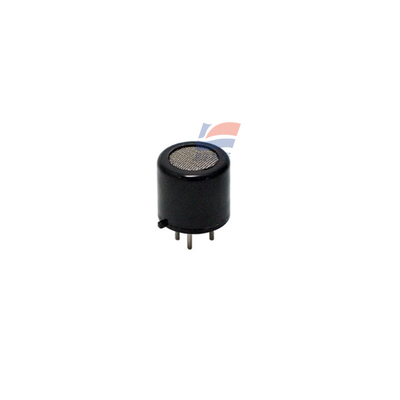

TGS6814 Gas sensor for detecting methane
Features:
* Very sensitive to methane
* The gas concentration has a linear relationship with the sensor output
* Very low sensitivity to organic vapors
* The output baseline has excellent stability
Applications:
* Methane gas detector
The TGS6814 is a catalytic combustion gas sensor that can detect 100%LEL level explosions
Lower limit methane gas. This sensor not only has excellent durability and fast response ability,
At the same time, the linear output and the high stability of the output are also the main characteristics.
The TGS6814 cap has a specially designed filter layer that allows it to cross over organic vapors
The sensitivity is very low. In addition, this sensor is more resistant to silicon compounds and more resilient to harshness
The environment.
| Operating conditions | -40˚C~+70˚C, ≤95%RH (no condensation) |
| Storage conditions | -40˚C~+70˚C, ≤95%RH (no condensation) |
| Test gas condition | methane 20±2˚C, 65±5%RH |
