Product Details:
|
| Operating Temperature Range: | -30 To 50 | Degrees (continuous: | -20 To 40 Degrees |
|---|---|---|---|
| Operating Humidity Range: | 0 To 100% RH (lasting 15 To 95%) | Power Consumption: | 10 To 50 UW |
| Highlight: | PID-TECH Gas Sensor,2000ppm Range Gas Sensor |
||
Product Description:

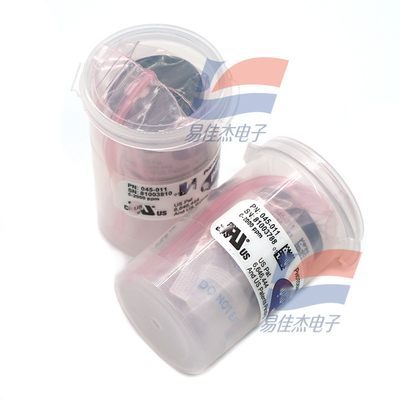

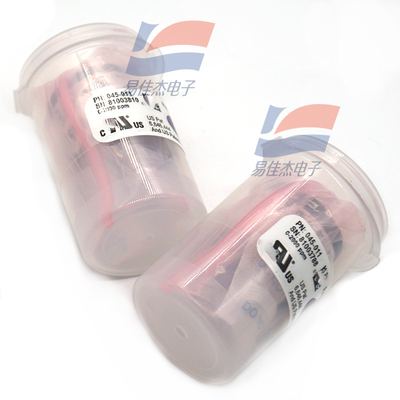

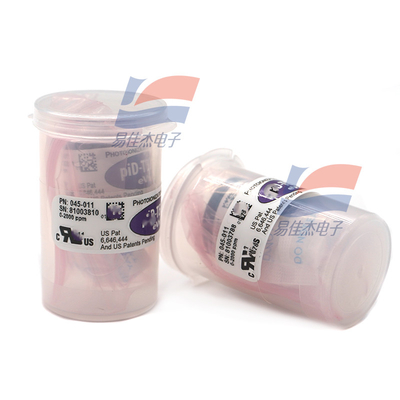

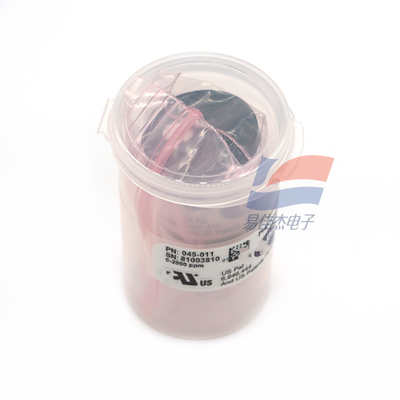

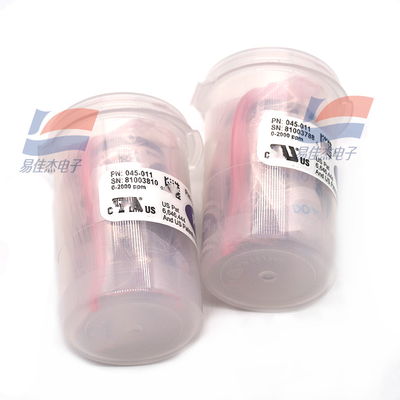

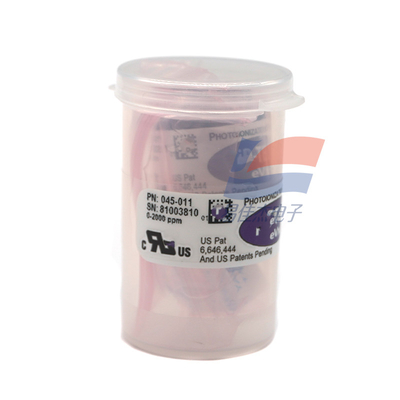

045-011 PID-TECH Industrial Health And Safety Monitoring Photoelectric Ion VOC Gas Sensor 2000ppm Range
Features:
baseline optical ion sensor technical parameters:
Compatible with city technology TM-4P elements
Detection unit: photoelectric detection lamp
Test gas: Volatile gas and gas with ionization potential less than or equal to 10.6eV accuracy * Small measurable quantity :0.005ppm
T90 Response time :(=20 seconds in diffusion mode)
baseline brand photoelectric ion VOC gas sensor 045-013 Temperature range :-20--40 High temperature up to 60) Relative humidity range :0-90%(no condensation)
Humidity response: At temperature of 25, relative humidity of %90, less than 1ppm filter: filter liquid/particle life :)2 years storage life gt; Two years
Pins :3
Electrical performance: Working voltage :3.2V-10V
Power loss :60mW-300mW, depending on the working voltage baseline brand photoelectric ion VOC gas sensor 045-013 Product application Factory health and safety monitoring geological pollution and remediation of harmful substances area and easy leakage area low concentration leakage monitoring
Can detect phenols, benzenes, hydrocarbons, alkanes, aromatics, olefins, halides, ester petroleum, fuel, oil, lubricating oil, grease, degreasing agent, etc.
Specifications:
| Lower detection limit | 0.005ppm |
| Repeatability | < reading +/- 3% |
| Response time | < Generally less than 15S |
| Sensitivity | 0 mV-32 +/ -10 nA/ppm |
