Product Details:
|
| Model Number: | TGS8100 | Sensing Principle: | MOS Type |
|---|---|---|---|
| Standard Package: | Ceramic | Target Gases: | Air Contaminants (hydrogen, Ethanol, Etc.) |
| Typical Detection Range: | 1 ~ 30ppm H2 | Heater Voltage: | 1.8V DC±2% |
| Highlight: | Long Life Gas Sensor,Surface Mount Package Gas Sensor,Low Power Consumption Gas Sensor |
||

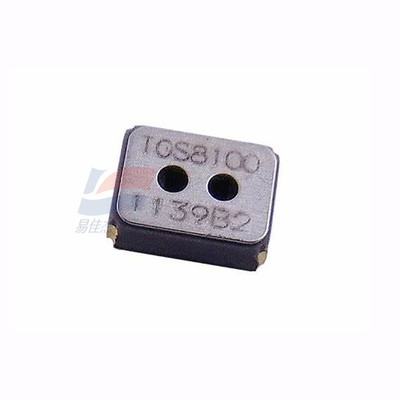

TGS8100 - for the detection of Air Contaminants
Features:
* Surface mount package
* Low power consumption
* High sensitivity to cigarette smoke, cooking odors, and gaseous air contaminants
* Long life
* Low cost
Applications:
* Indoor air quality monitors
* Air cleaners
* Ventialtion control
* Kitchen range hood control
The sensing element is comprised of a sensing chip and an integrated heater formed on a silicon substrate using MEMS technology, and a metal-oxide semiconductor layer formed on the sensing chip. The device is housed in a surface-mount ceramic package. Due to miniaturization of the sensing chip, TGS 8100 requires a heater power consumption of only 15mW, and is suitable for low-power equipment and battery-operated instruments. In the presence of detectable gas, sensor conductivity increases depending on gas concentration in the air. A simple electrical circuit can convert the change in conductivity to an output signal which corresponds to the gas concentration.
The TGS 8100 has high sensitivity to low concentrations of gaseous air contaminants such as cigarette smoke and cooking odors. By utilizing the change ratio of sensor resistance from the resistance in clean air as relative response, human perception of air contaminants can be simulated and practical air quality control can be achieved.
| Test gas conditions | normal air at 20±2˚C, 65±5%RH |
| Circuit conditions | same as std circuit conditions |
| Conditioning period before test | 1 hour or longer |
