Product Details:
|
| Dimensions: | 103 Mm X 58 Mm X 30 Mm | Batteries: | 172 Mm X 67 Mm X 66 Mm |
|---|---|---|---|
| Weight: | With Standard Lithium Battery = 182g; | With Pump: | 380 Grams |
| Highlight: | YJJ 17134495 Gas Sensor,4-in-1 Detector Gas Sensor,VentisMX4 Gas Sensor |
||
Product Description:

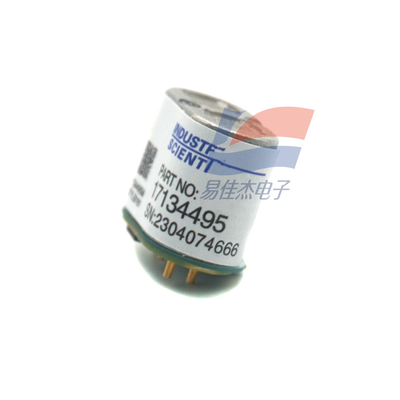

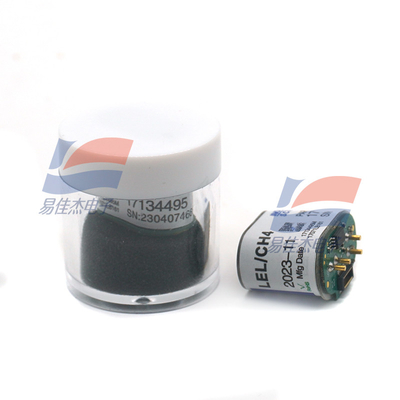

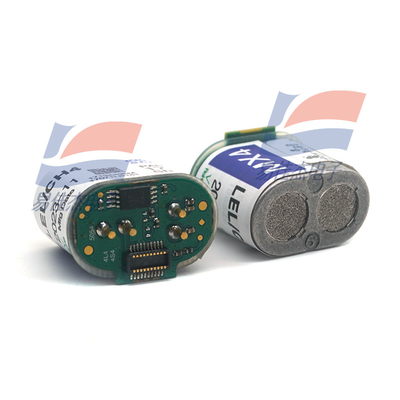

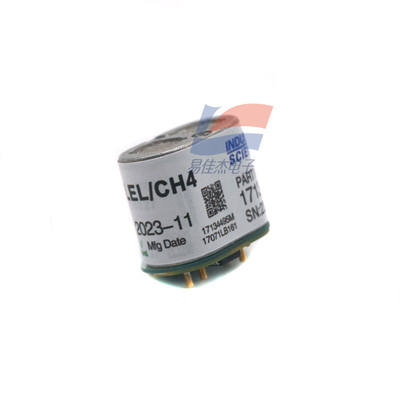

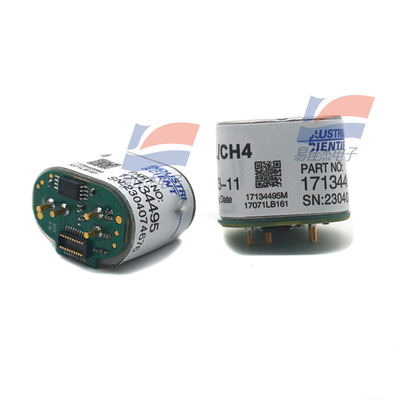

17134495 InSCO Combustible Gas Sensor For 4-in-1 Detector VentisMX4
Features:
VentisMX4 Intercom monitor Specifications:
Case: polycarbonate and rubber protective case
Protection level :IP66
Size: 103 mm x 58 mm x 30 mm with standard lithium battery; 172 mm x 67 mm x 66 mm with standard lithium battery, with pump
Weight: With standard lithium battery = 182g; With standard lithium battery, with pump = 380 grams
Display/Reading: Backlit liquid Crystal Display (LCD)
Sensor principle: Combustible gas/methane - catalytic combustion; O2,CO,H2S,NO2,SO2 - Electrochemistry
Battery/Run time: Thin extended lithium-ion battery - 18 hours (diffusion); Standard lithium-ion battery - 12 hours (diffusion); Enhanced lithium-ion battery - 20 hours (diffusion), 12 hours (pumping); Alkaline battery - 8 hours (diffusion), 4 hours (pumping)
Operating temperature :-20°C ~ 50°C
Working humidity :15% ~ 95% non-condensing (continuous)
Alarm: super bright LED light; 95 dB sound alarm (30cm from sound source)
VentisMX4 InSCOX 4-in-1 detector Features and Advantages:
Detect 4 gases simultaneously
Protection level up to IP66, data storage up to 800,000
Integrated sampling pump is optional
Optional safety orange housing, effectively improve instrument visibility
20 hours of continuous operation with enhanced lithium battery (without pump)
Compatible with iNet to achieve better gas detection results
Specifications:
| Combustible gas | LEL 0-100% LEL 1% |
| Methane | CH4 0-5%VOL 0.01% |
| Oxygen | O2 0-30% VOL 0.1% |
| Carbon monoxide | CO 0-1000 ppm 1 ppm |
