Product Details:
|
| Operating Voltage: | 3.3 To 5.5V DC | Standard Voltage: | 5V DC |
|---|---|---|---|
| Average: | < 70mA@5V DC | Peak Value: | < 140mA@5V DC |
| Highlight: | YJJ G4P-CO2 Gas Sensors,Electrochemical Infrared Gas Sensors,4 Series Electrochemical Infrared Gas Sensors |
||
Product Description:

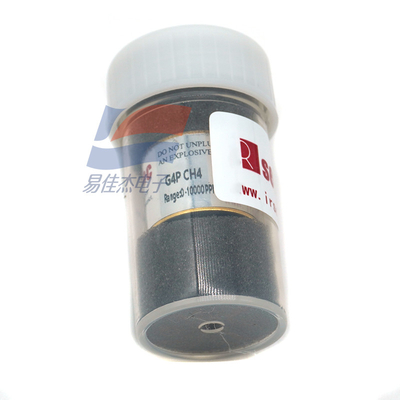

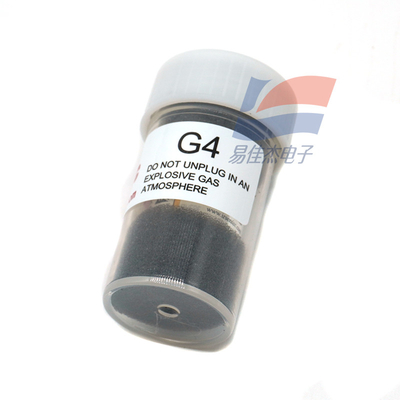

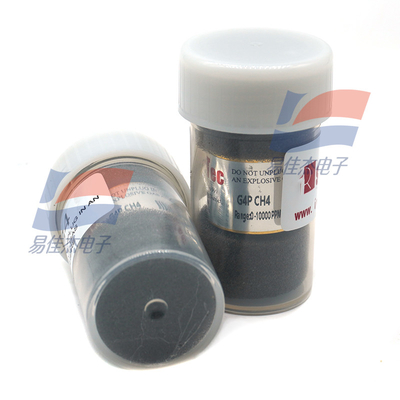

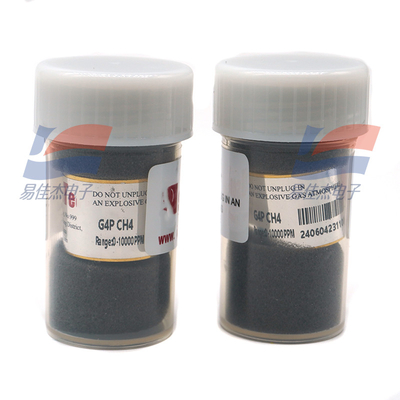

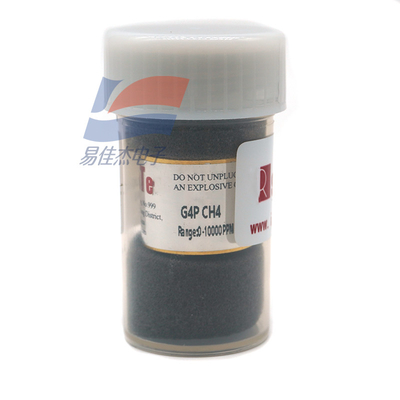

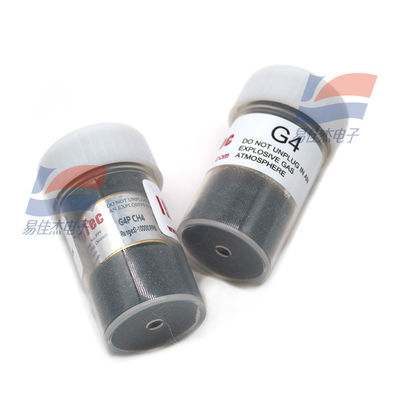

G4(P)-CH4 G4P-CO24 Series Of Electrochemical Infrared Gas Sensors Measure The Concentration Of Gas Molecules
Features:
G4P series infrared gas sensor is an intelligent micro gas sensor designed based on NDIR principle, with high resolution, fast response time, analog and digital signal output. The sensor has a gold-plated housing, which is not corrosion-resistant and can better cope with harsh operating environments.
Self-developed dual wavelength optical path design
Using gas molecules to measure the absorption characteristics of specific wavelength infrared spectrum concentration, self-developed dual-wavelength optical path design
Fast response speed
Measurement of gas molecular concentration, fast response
anti-poisoning
Non-chemical principle, anti-poisoning, reusable
Long service life
Strict selection of material shell to ensure service life
Long life, high accuracy
No oxygen dependence and catalytic sensor poisoning phenomenon, long life, high accuracy, stable performance
Specifications:
| Hydrocarbon combustible gases | 0-100%LEL |
| Methane | 0-5%VOL, 0-100%VOL |
| Carbon dioxide | 0-5000ppm, 0-5%VOL, 0-100%VOL |
| 0-100%LEL | 0.5%LEL |
