Product Details:
|
| Aeration Reaction Time: | <5S | Preheating Time: | 60S |
|---|---|---|---|
| Zero Drift Per Month: | <±1%F.S (charged) | Operating Temperature: | -40℃ ~ +70℃ |
| Storage Temperature: | -40℃ ~ +85℃ | Humidity Range: | 0 ~ 95%RH(no Condensate) |
| Highlight: | YJJ IRS4 Nitrous Oxide Gas Sensor,N2O Nitrous Oxide Gas Sensor |
||
Product Description:

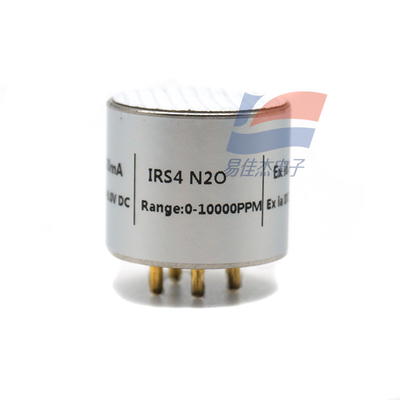

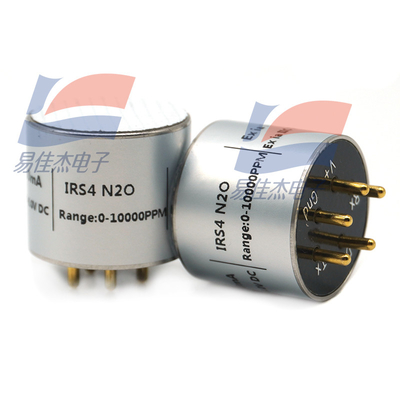

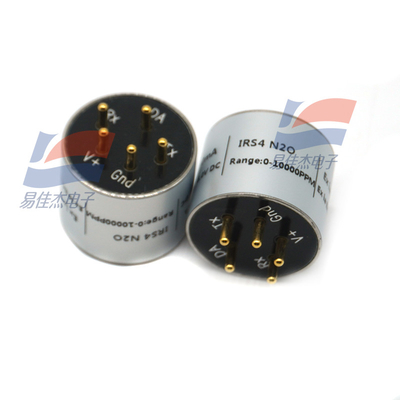

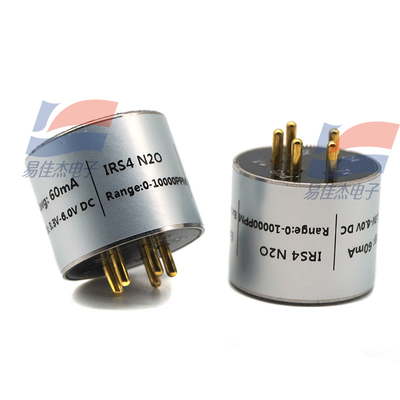

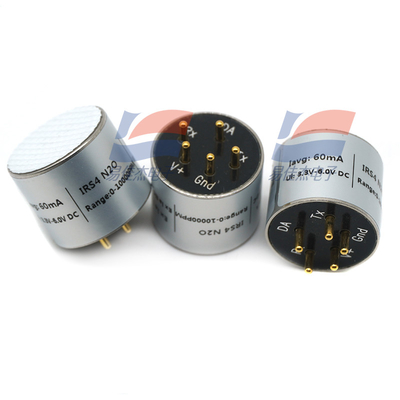

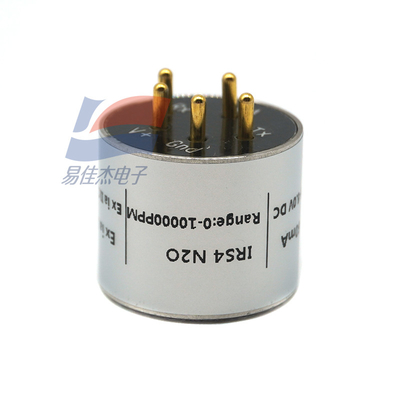

IRS4 N2O NDIR Principle Intelligent Micro Infrared Nitrous Oxide Gas Sensor With A Variety Of Ranges To Choose From
Features:
Sensor is based on the NDIR principle design of intelligent micro gas sensor, no oxygen dependence, anti-poisoning, a certain process
Degree of corrosion resistance, long life, high accuracy, stable performance. Can be used for environmental monitoring, medical, biological engineering, agricultural weather stations,
Cold chain transportation, mushroom room, gas drainage pipeline monitoring, chemical industry, petroleum, metallurgy, oil depot, liquefied gas station, painting operation, gas transmission
Matching place.
The sensor has analog and digital signal output interface, which is suitable for various environmental measurement such as industrial field or laboratory
Quantity requirement. It can directly output the gas concentration value signal with linearization and temperature compensation, which is easier to use.
Specifications:
| Operating voltage | 3.0V~6.0V DC |
| Recommended voltage | 5.0V DC |
| Working current | 60mA @5.0V DC |
| Response time | T90<30S |
