Product Details:
|
| Detection Range: | 0-25%VOL | Maximum Load Concentration: | 30%VOL |
|---|---|---|---|
| Output Signal: | 0.10 ± 0.02 MA In Air | Zero Drift: | 0.6% VOL |
| Highlight: | Industrial Mine Oxygen Concentration Detection Sensor,Electrochemical Oxygen Concentration Detection Sensor,Medical Oxygen Concentration Detection Sensor |
||
Product Description:

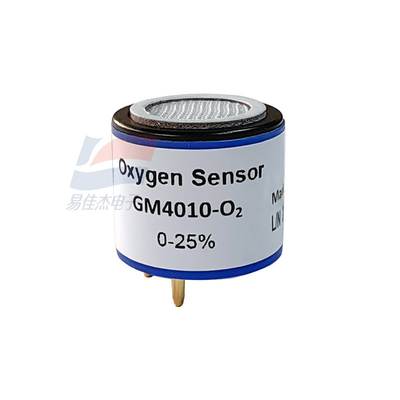

GM4010-O2 Electrochemical Oxygen Sensor Industrial Mine Storage Medical O2 Oxygen Concentration Detection Sensor
Features:
GM4010 Oxygen O₂ sensor has the characteristics of high sensitivity, good stability, strong anti-interference ability, etc., widely used in the field of petroleum and chemical mining oxygen alarm, medical oxygen generator, air quality detection instrument, underground parking lot and commercial air purification equipment, car air quality detection, and car purification equipment fresh air system and other fields.
Detection gas: Oxygen
Test range: 0-25%vol
Detection distance: electrochemical two electrodes
Installation: oxygen alarm, medical oxygen generator, air purification equipment
Detection range: 0-25%VOL
Maximum load concentration: 30%VOL
Output signal: 0.10 ± 0.02 mA in Air
Zero drift: 0.6%VOL
Resolution: 0.1%VOL
Response time (T90) : < 15S
Specifications:
| Detection range | 3.8-5.7μA/vol%(room temperature) |
| Maximum load concentration | < 0.2 vol % |
| sensitivity | 10 |
| Zero drift | 11 |
