Product Details:
|
| Product Category: | Multifunctional | Product: | Evaluation Boards |
|---|---|---|---|
| Type: | Optical Oxygen Sensor | Working Power Supply Voltage: | 4.75V To 5.25V |
| Highlight: | Fluorescent Oxygen Sensor Evaluation Board,LOX-EVB Oxygen Sensor Evaluation Board |
||
Product Description:

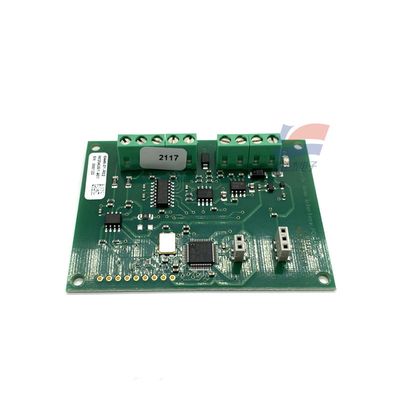

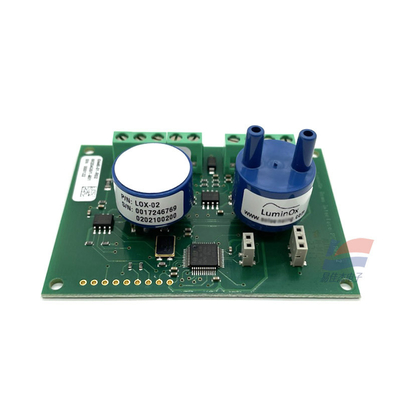

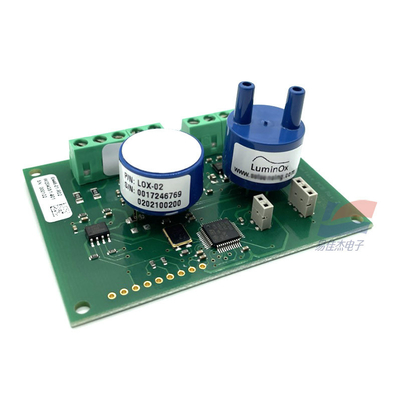

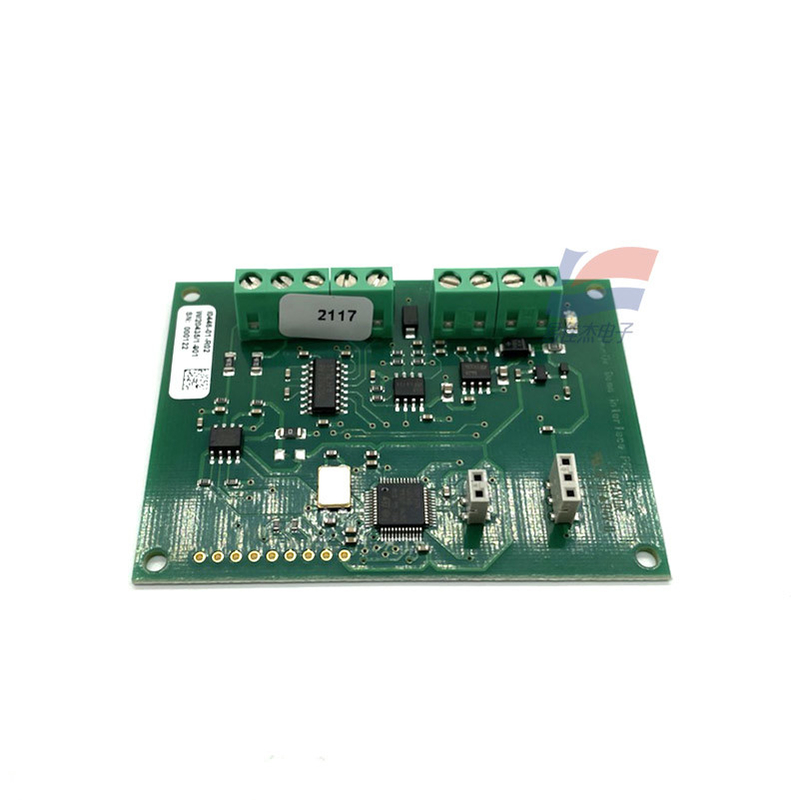

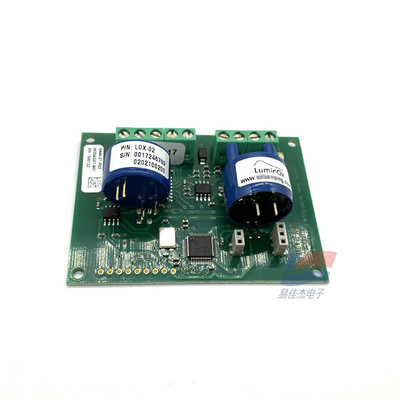

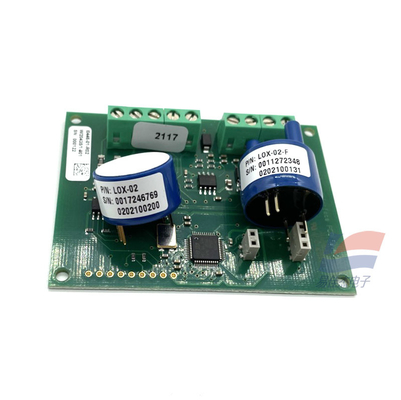

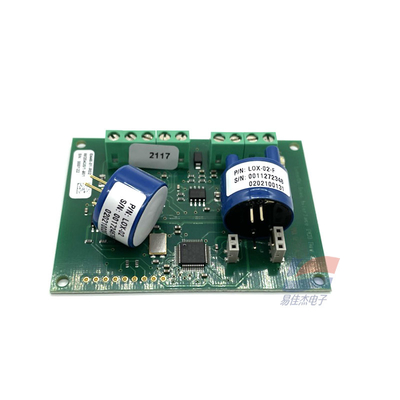

LOX-EVB Fluorescent Oxygen Sensor Evaluation Board Is Available In Three Outputs
Features:
Description of fluorescence oxygen sensor evaluation board LOX-EVB
The fluorescent oxygen sensor is a factory calibrated sensor that calculates the partial pressure of oxygen in the air according to the principle of oxygen fluorescence promoting extinction.
The Fluorescent Oxygen Evaluation Board helps customers develop the fluorescent oxygen sensor LOX-02 faster and easier.
This evaluation board offers 3 outputs: RS232,RS485(Modbus RTU),0 to 5V output
Second, fluorescent oxygen sensor evaluation board LOX-EVB electrical and environmental parameters:
Power supply voltage 4.75~5.25V DC
Power supply current <50mA
Output type RS232, RS485, 0~5V
Operating temperature 0~50°C
Storage temperature 0~60°C
Three, fluorescent oxygen sensor evaluation board LOX-EVB performance parameters:
Fluorescent oxygen sensor LOX-02 has a range of 0~25%
Resolution
0.01%/0.1mbar(digital output)
0.01V(0~5V analog output)
Four, fluorescent oxygen sensor evaluation board LOX-EVB mechanical parameters:
Connect 9 threaded terminals
PCB volume 75*55mm
Specifications:
| Dimensions | 75 mm x 55 mm |
| Interface type | Serial |
| Maximum operating temperature | + 50 C |
| Minimum operating temperature | 0 C |
