Product Details:
|
| Initial Reading: | <30 Seconds | High Speed Induction Reading: | (20Hz) |
|---|---|---|---|
| Low Power Consumption: | 35mW | CO2 Concentration: | 0-100％ |
| Highlight: | SprintIR-6S NDIR CO2 Sensor,High Speed NDIR CO2 Sensor,Ultra-fast NDIR CO2 Sensor |
||
Product Description:

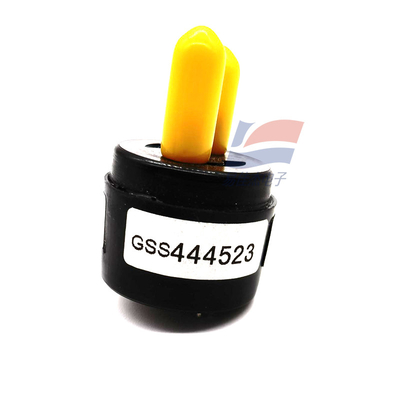

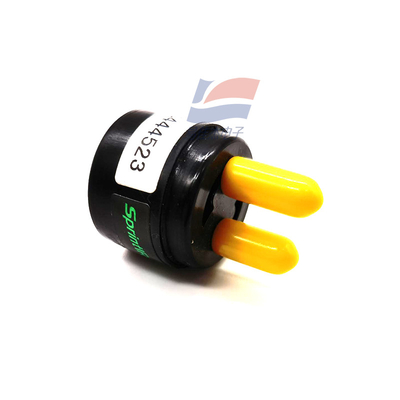

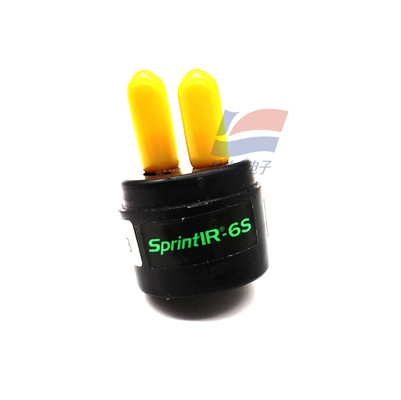

SprintIR-6S New Ultra-fast NDIR CO2 Sensor Is Used To Install Home Networks
Features:
GSS SprintIR-6S is part of a family of CO2 sensors designed to provide high-speed measurement capabilities. The SprintIR®-6S takes up to 20 readings per second, making it ideal for applications that require individual measurements with high repetition rates or rapid changes in CO2 concentration.
The SprintIR-6S is equipped with a standard flow adapter, so CO2 gas can pass through the optical sensor at high speed. Other custom adapters are also available depending on installation requirements. The SprintIR-6S is based on our LED technology platform and optical design. It is this solid-state technology that enables great speed, power consumption and durability.
The SprintIR-6S uses NDIR solid-state LED optical technology that enables the sensor to respond to rapidly changing carbon dioxide without compromising parametric performance.
specification
20 readings per second
Optional custom traffic adapter
Low power CO2 sensor
Solid-state LED optical technology
Serial data interface
Built-in automatic calibration
Apply
Health care
Food packaging
Sports science
Specifications:
| Measurements range from | 0 to 100% |
| supply voltage is | 3.3v |
| Low power consumption | 35mW |
| Preheating time | <1 minute |
