Product Details:
|
| Sensor Technology: | Micro Fuel Cell | Signal Output: | 285 - 590 UA |
|---|---|---|---|
| Measuring Range: | 0 - 10PPM (Min); 0 - 10000PPM (Max) | Response Time T90: | 13 Seconds |
| Accuracy Full Scale: | ±1% Of Signal | Repeatability F.S: | ±0.5% |
| Highlight: | Trace Oxygen Gas Sensor,Electrochemical Oxygen Gas Sensor,Industrial Oxygen Gas Sensor |
||

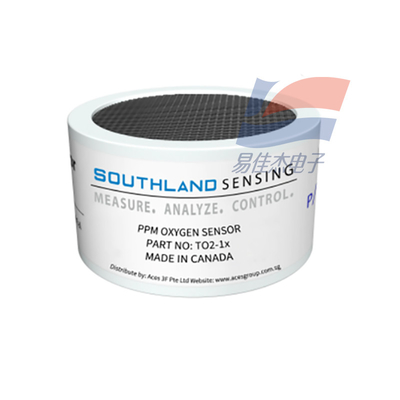

TO2-1x PPM Oxygen Sensor
General Purpose Trace O2 measurement 0 - 10ppm. Used in most industrial applications
TO2-1x PPM Oxygen Sensor Direct Replacement Guide
Teledyne Analytical B-2C
Analytical Industries PSR-12-223
TO2-1x PPM Oxygen Sensor Specifications:
| Sensor Technology | Micro Fuel Cell |
| Signal Output1 | 285 - 590 uA |
| Measuring Range | 0 - 10 PPM (Min) 0 - 10000 PPM (Max) |
| Response Time T90 | 13 Seconds |
| Accuracy Full Scale2 | ± 1% of Signal |
| Repeatability F.S. | ±0.5% |
| Temp Coefficient | 2.54 % /ºC |
| Operating Temp | 0 to 50ºC |
| Storage Temp | 0 to 45ºC |
| Recommended Flow | 0.5 - 5 SCFH |
| Humidity | 0 - 100% RH (Non - Condensing) |
| Expected Life3 | 20 - 25 Months |
| Storage | 6 Months |
| Warranty4 | 12 Months |
| PCB Connection | Center Foil Negative Outer Foil Positive |
1. Signal output is measured in air at 25°C, sea level.
2. Accuracy full scale is calculated with constant pressure and temperature & proper calibration (90% O2 value on full scale range). Drastic Temperature change can result in a maximum error of ± 10%.
3. Expected life is calculated when O2 < 1000 ppm @ 25°C, Sea Level.
