Product Details:
|
| Output: | 3.4 – ±0.4V At 100% Oxygen, 1 ATM | Range: | 1 – 100% Oxygen |
|---|---|---|---|
| Accuracy: | Less Than ±1.0% Oxygen At Constant Temperature And Pressure, When Calibration In Air And 100% Oxygen | Resolution: | 0.1% |
| Response Time: | 10 – 90% OS Step Change In <130 MS (@200 ±100 Cc / Min Gas Flow Rate) Response Time Will Degrade At Slower Flow Rate. | Cross Interference: | Referenced To ISO7767 (May, 1997) ASTM-F1462/93 |
| Highlight: | UFO-130-2 Gas Oxygen Sensor,Accurate Measurement Oxygen Gas Sensor |
||

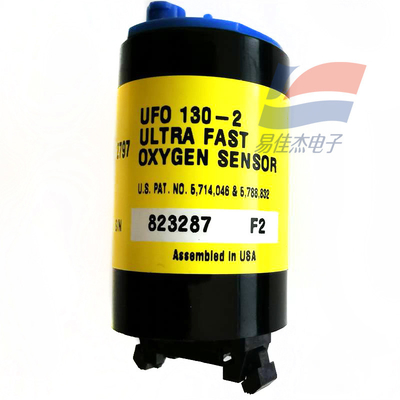

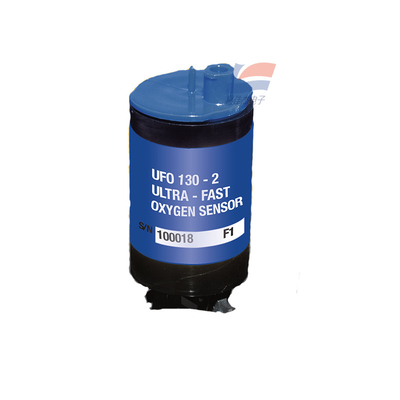

UFO-130-2 Gas Sensor
The 2-year Ultra Fast Oxygen sensor (UFO-130-2) is a prime example of this capability. Specifically developed as a reliable and economical alternative to expensive paramagnetic and optical sensors, the Teledyne UFO utilizes fuel cell technology which is inherently rugged and forgiving.
Unlike other sensors, the UFO is insensitive to shock, vibration, and position, and will withstand repeated exposure to water without damage. With an average response time of 100 milliseconds, the UFO is one of the fastest sensors ever developed for this application.
Ideally suited for use in Metabolic and Critical Care Monitors, the UFO is also a welcome addition to Clinical Exercise and Sports Medicine as well as other applications where Breath by Breath analysis is critical.
| Operating ambient pressure: | 550 – 800 mm Hg |
| Operating relative pressure | Continuous: -100 to +100 mm Hg to ambient pressure Intermittent: Up to -200 mm Hg for less than 5 seconds |
| Sensor life expectancy | 24 months in air @ 25°C 50% RH |
| Sensor storage temp | 0 – 40°C |
| Gas inlet connection | 1/16” OD tube |
