Product Details:
|
| Operating Principle: | Electrochemical | Output Signal: | 0.1 ± 0.03mA In Air |
|---|---|---|---|
| Measurement Range: | Output From 0 To 30% 0. | Respond Time (T90): | ＜15S |
| Recommended Load Resistor: | 450 | Housing Material: | ABS |
| Highlight: | Air Testing Oxygen Electrochemical Gas Sensors,High Performance Oxygen Electrochemical Gas Sensors,Small Size Oxygen Electrochemical Gas Sensors |
||

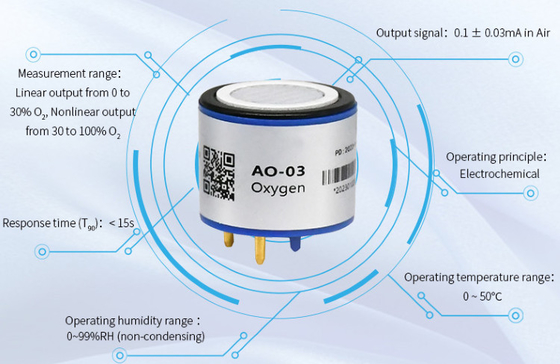

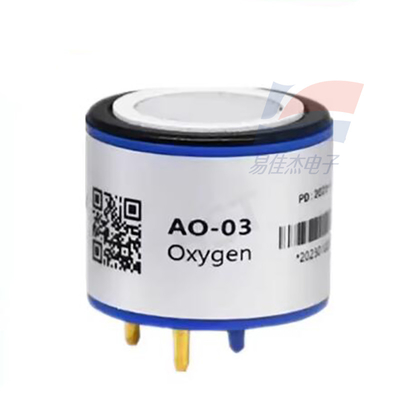

AO-03 Oxygen Electrochemical Gas Sensors Small Size Air Testing High Performance
A0-03 is an electrochemical sensor for oxygen concentration mea- surement. The sensor adopts molded body design and provides a
quick, accurate and reliable response. lt is small, portable, easy to be in- stalled and replaced, and much more cost-effective than other sensors
of the same type in the market.
A0-03 oxygen sensoris widely used in air monitoringin coal mine, steel and petrochemical industry, and other fields, for instance,
oxygen alarm in mine area, air quality detector and commercial air purifier.
| Weight | <16g |
| Operating temperature range | 0~50°C |
| Operating pressure range | Atmospheric士20% |
| Operatinghumidity range | 0~99%RH(non-condensing) |
| Long-term output drift? (signal loss/year) | < 2% |
| Expected life time | 2 years in Air |
| Shelf life | 12 months from date of dispatch |
