Product Details:
|
| Operating Principle: | Partial Pressure Electrochemical | Output Voltage: | 9~13 MV(in Ambient Air) |
|---|---|---|---|
| Measurement Range: | 0~100 % | Temperature Compensation: | <2% O, Equivalent (0 ~ 40 °C) |
| Response Time (To: | <15 S | Accuracy: | ± 1% |
| Highlight: | Reliable Oxygen Electrochemical Gas Sensor,AO-07 Oxygen Electrochemical Gas Sensor,Breathing Machine Oxygen Electrochemical Gas Sensor |
||

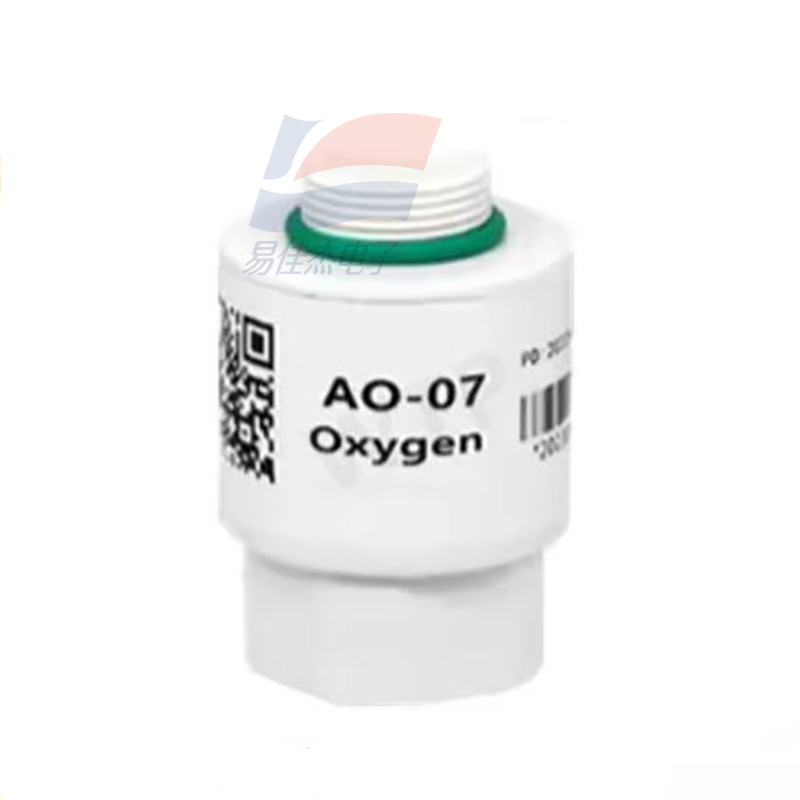

AO-07 Oxygen Electrochemical Gas Sensor Use For Breathing Machine Reliable
1. Product Overview
AO-07 is an electrochemical oxygen sensor for measuring oxygen concentration, designed for medical equipment. The interface model of AO-07 oxygen sensor is 5520257-2. The sensor adopts a molded one-piece design, fast response speed, long life, and can achieve domestic substitution. This sensor reduces costs while providing customers with excellent quality. The pin definition of AO-07 oxygen sensor is different from that of AO-06 oxygen sensor.
2. Application
No external power supply is required to use AO-07. The sensor is calibrated before leaving the factory. To avoid temperature influence, the sensor has temperature compensation function. AO-07 can be used as a sensing element of oxygen analyzer, such as oxygen concentrator, medical ventilator, anesthesia equipment, and control element of thermostat. 3. Product Features ● Linear output ● No external power supply required ● Temperature compensation ● Accurate and reliable ● Fast response ● Anti-interference
The A0-07is an electrochemical oxygen sensor for oxygen concentration measurement and is designed specifically for medical equipment.
The sensor adopts molded body design, provides fast response and has long life.
