Product Details:
|

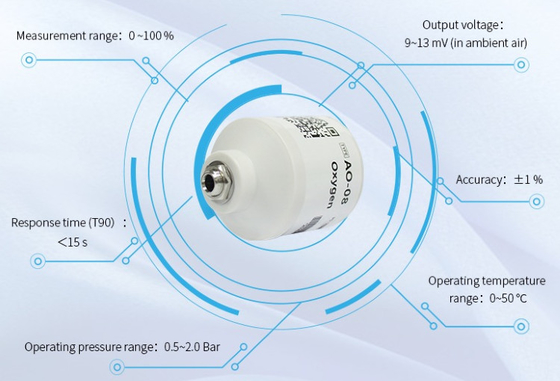

| Output Voltage: | 9~13 MV(in Ambient Air) | Measurementrange: | 0~100 % |
|---|---|---|---|
| Temperature Compensation: | <2% O, Equivalent (0 ~ 40 °C) | Response Time (T90): | <15 S |
| Operating Temperature Range: | 0~50°C | Operating Pressure Range: | 0.5~2.0 Bar |
| Operating Humidity Range: | 0~99% RH(non-condensing) | Connector: | 3.5 Mm Phone Jack |
| Highlight: | Breathing Machine Oxygen Gas Sensor,Anti Interference Oxygen Gas Sensor,AO-08 Oxygen Gas Sensor |
||

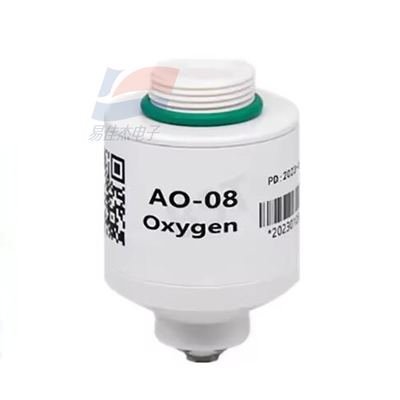

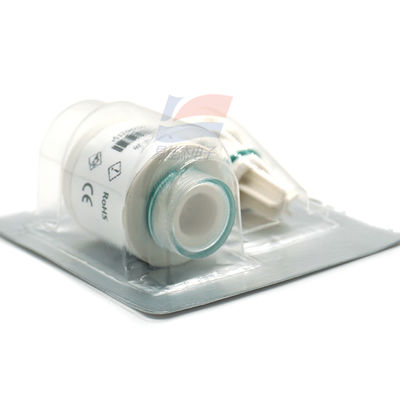

AO-08 Gas Electrochemical Sensor Oxygen Analyzer Anti Interference Use For Breathing Machine
The AO-08 medical oxygen sensor is intended as the oxygen sensing component of an oxygen analyzer to measure oxygen concentration in respiratory gas mixtures in the following applications:
*Oxygen Sensing Devices
*Oxygen Concentrator Controls
*Medical Ventilators
*Anesthesia Equipment
*Incubators
The AO-08 is an electrochemical oxygen sensor for oxygen concentra-tion measurement and is designed specifically for medical equipment.
The sensor adopts molded body design, provides fast response and has long life.
Using A0-08 requires no external power supply. Sensors been calibrated before leaving the factory. To avoid the influence of temperature.
temperature compensation function is applied in sensors. AO-08 can be used as the sensing component in oxygen analyzer, such as control com
ponent in oxygen generator, medical ventilator, anesthesia equipment incubator.
