Product Details:
|
| Output Voltage: | 9~13 MV(in Ambient Air) | Measurement Range: | 0~100 % |
|---|---|---|---|
| Temperature Compensation: | <2% O, Equivalent (0 ~ 40 °C) | Response Time (T90): | <15 S |
| Operating Temperature Range: | 0~50 °C | Operating Pressure Range: | 0.5~2.0 Bar |
| Operating Humidity Range: | 0~99% RH(non-condensing) | Connector: | 3P 2.54 |
| Highlight: | Electrochemical Oxygen Gas Sensors,Long Life Oxygen Gas Sensors,Molex 3 Pin Oxygen Gas Sensors |
||

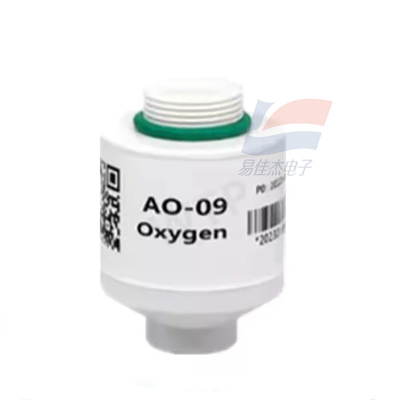

AO-09 Oxygen Gas Sensors Electrochemical Long Life Molex 3 Pin connector
The AO-09 is an electrochemical oxygen sensor for oxygen concentration measurement and is designed specifically for medical equipment.
The sensor adopts molded body design, provides fast response and has long life.
Using AO-09 requires no external power supply. Sensors been cali-brated before leaving the factory. To avoid the influence of temperature,
temperature compensation function is applied in sensors. AO-09 can be used as the sensing component in oxygen analyzer, such as control
com-ponent in oxygen generator, medical ventilator, anesthesia equipment, incubator.
The AO-09 medical oxygen sensor is intended as the oxygen sensing component of an oxygen analyzer to measure oxygen concentration in respiratory gas mixtures in the following applications:
· Oxygen sensing devices
· Oxygen concentrator control devices
. Medical ventilators
· Anesthesia equipment
· Incubators

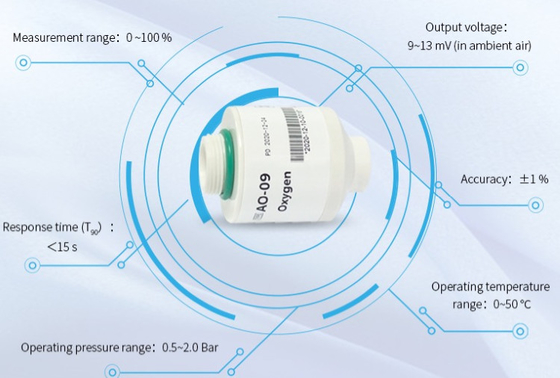

| Output | 9~13 mV (in ambient air) |
| Measurement range | 0~100% |
| Temperature compensation | <2% O² equivalent (0℃-40℃) |
| Response time (T 90) | <15 seconds |
| Operating temperature range | 0~50℃ |
| Operating pressure range | 0.5~2.0 bar |
| Operating humidity range | 0~99% RH (non-condensing) |
