Product Details:
|
| Highlight: | G12180-005A PIN Photodiode,Large Photosensitive Area PIN Photodiode,Low Dark Current PIN Photodiode |
||
|---|---|---|---|

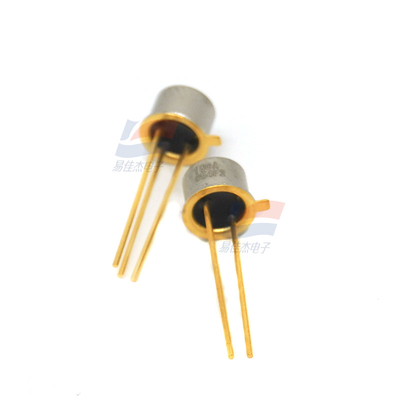

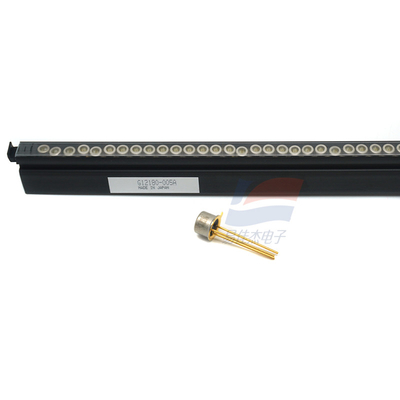

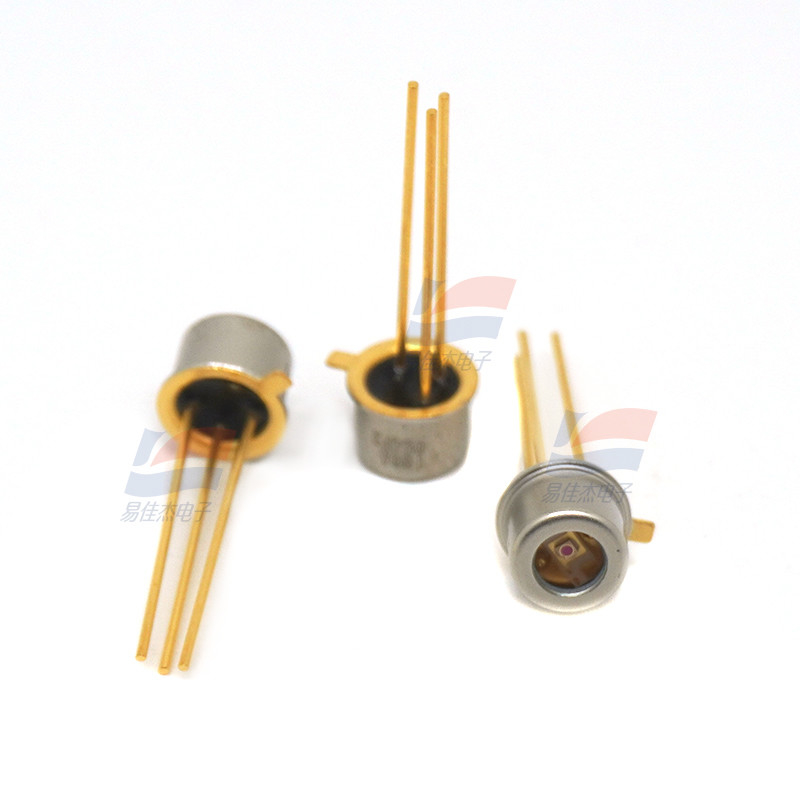

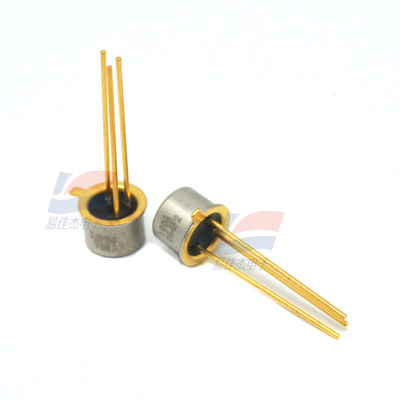

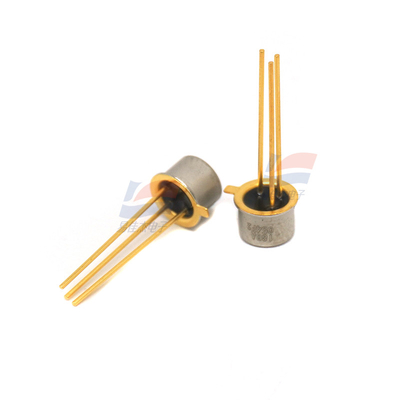

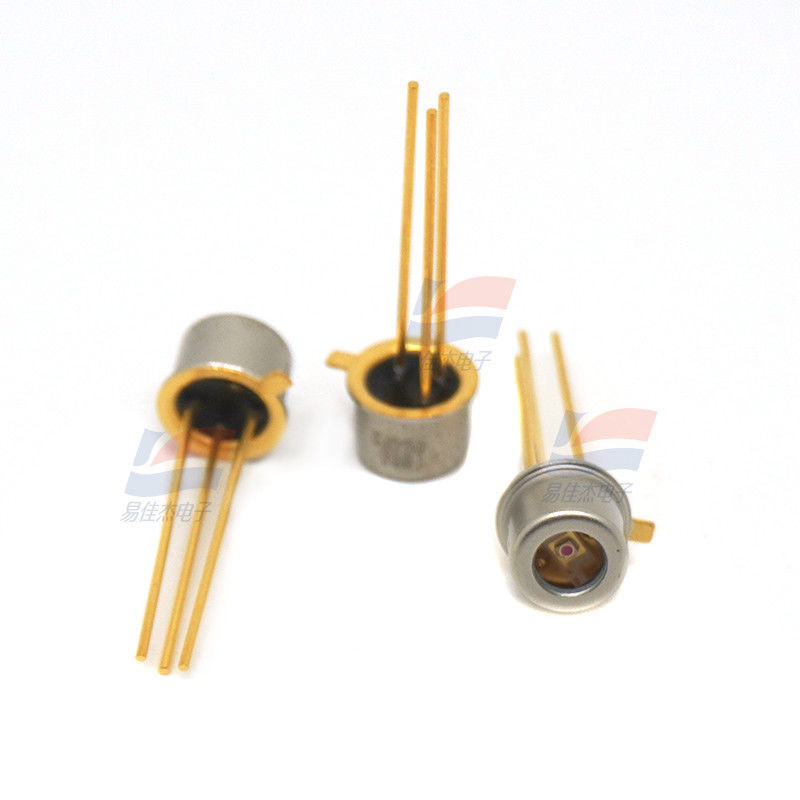

G12180-005A PIN Photodiode Low Dark Current Large Photosensitive Area
InGaAs PIN photodiodes have large shunt resistance and feature very low noise. Hamamatsu provides various types of
InGaAs PIN photodiodes with photosensitive area from t0.3 mm to $5 mm.
Features
1. Low noise, low dark current
2. Low terminal capacitance
3. Large photosensitive area
4. Various photosensitive area sizes available
Applications
1. Laser monitors
2. Optical power meters
3. Laser diode life test
4. NIR (near infrared) photometry
5. 0ptical communications
| Photosensitive area | φ0.5 mm |
| Number of elements | 1 |
| Package | Metal |
| Package category | TO-18 |
| Cooling | Uncooled |
| Spectral response range | 0.9 to 1.7 μm |
| Peak sensitivity wavelength (typical) | 1.55 μm |
| Sensitivity (typical) | 1.1 A/W |
| Dark current (maximum) | 0.75 nA |
| Cut-off frequency (typical) | 200 MHz |
