Product Details:
|
| Bias Voltage: | 0V | Pin: | 4 Pins |
|---|---|---|---|
| Output Signal: | 350±100nA/PPM | Typical Baseline Range: | +/- 100nA (Net S-A Baseline |

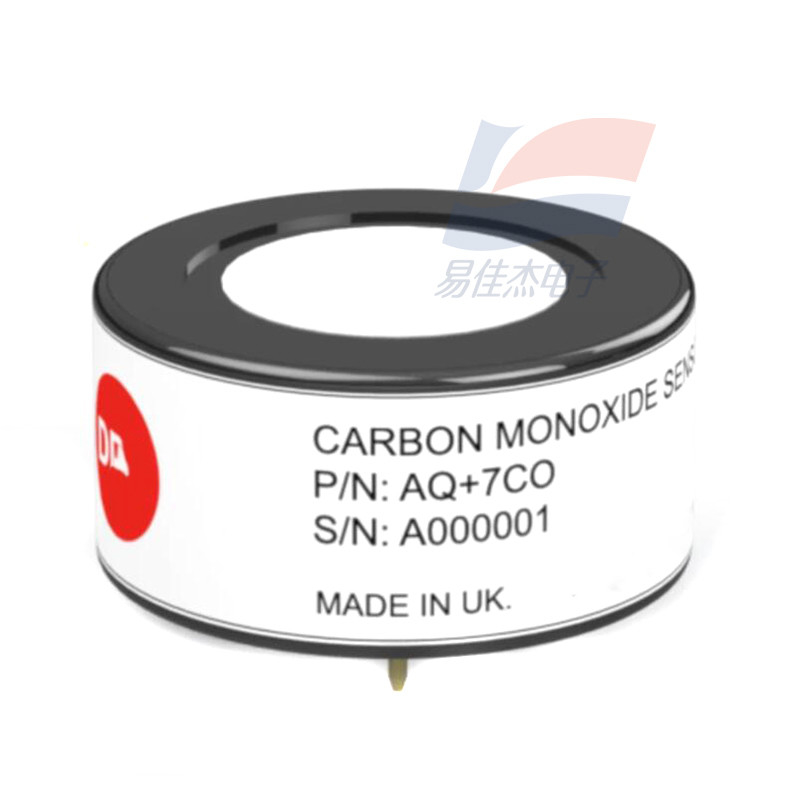

AQ-7CO Carbon Monoxide Gas Sensor Environment In Air Quality High Stability
Key Features:
High stability, fast response and recovery, strong environmental stability and small package interchangeable with 4 series
Common Applications:
1. Food and Beverage
2. HVAC
3. General Industrial
4. Industrial Safety
Introduction AQ+7C0 is a 4-electrode CO sensor designed for ambient air quality applications
Features The fourth electrode is used to improve the drift effect of baseline with ambient temperature changes, and the internal filter is used to remove SOxNOx/H2S and O3
| T90 Response Time | <30 seconds |
| Measurement Range | 0-20 ppm |
| Maximum Overload | 200 ppm |
| Repeatability | <±2% CO equivalent |
| Recommended Load Resistance | 20 ohms |
| Resolution | <10 ppb typical |
