Product Details:
|
| Bias Voltage: | 0V | Pin: | 4 Pins |
|---|---|---|---|
| Output Signal: | 1700±400nA/PPM | T90 Response Time: | ＜60S |

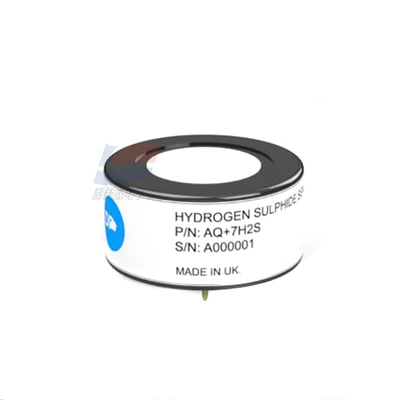

AQ+7H2S Hydrogen Sulfide Sensor Four Electrode Ambient Air Quality 4 Pin Connector
Introduction AQ+7H2S is a 4-electrode H2S sensor designed for ambient air quality applications
Features The fourth electrode is used to improve the baseline drift effect due to ambient temperature changes
Key Features:
High stability, fast response and recovery, strong environmental stability and small package interchangeable with 4 series
Detailed description
The AQ+7H2S H2S is a 7 series format hydrogen sulfide sensor with a 4-pin interface. The AQ+7H2S requires OV bias. The AQ+7H2S
has a measurement range of 0-25 ppm, an output of 1700±400 nA/ppm, a response time of <60 seconds and a warranty of 24 months.
Key features of the AQ+7H2S include: High accuracy, strong environmental stability and excellent value proposition
| Maximum overload | 100 ppm |
| Recommended load resistance | 20 ohms |
| Resolution | < 10 ppb typical |
| Temperature range | -30°C to +50°C |
| Temperature range | -30°C to +50°C |
| Pressure range | 800 to 1200 mbar |
| Humidity range | 15% to 90% RH |
