Product Details:
|
| Target Gas: | Nitric Oxide (NO) | Package: | 7 Series |
|---|---|---|---|
| Range: | 0 - 25 Ppm | Output: | 400 ± 100 Nanoamperes/ppm |
| T90 Response Time: | < 60 Seconds | Interface/Pinout: | 1-pin/4-pin |

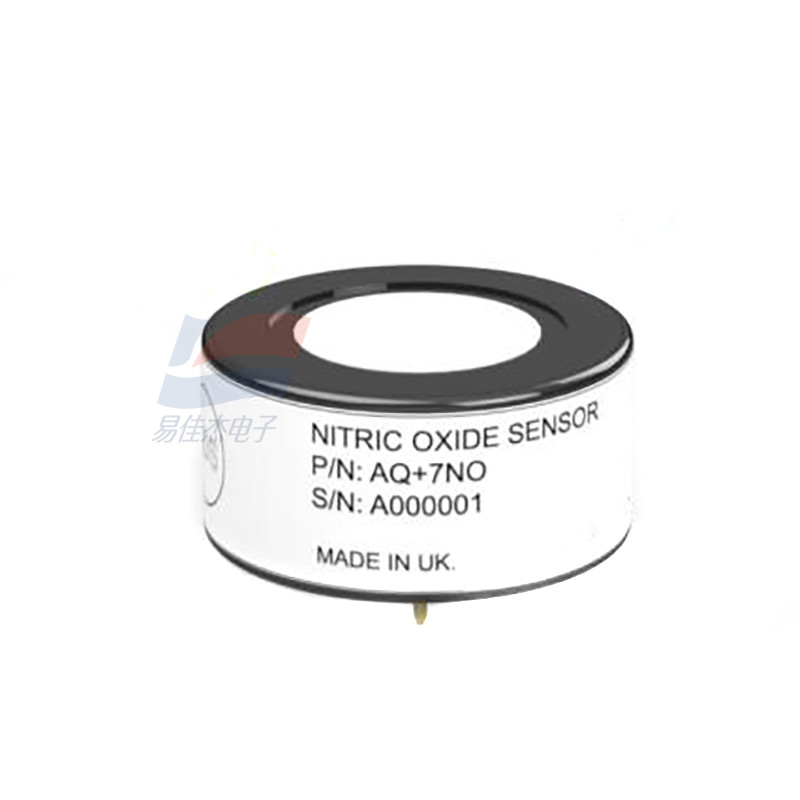

AQ+7NO Nitric Oxide NO Sensor 7Series 4Pin High Precision 4th Electrode
Detailed description:
The AQ+7NO is a 7-series format nitric oxide sensor equipped with a 4-pin interface. The AQ+7NO requires a +300mV bias voltage. The AQ+7NO has a measurement range of 0 - 25 ppm, an output current of 400 ± 100 nA/ppm, a response time of less than 60 seconds, and a warranty of 24 months. The main features of the AQ+7NO include: high accuracy, strong environmental stability, and excellent price/performance ratio.
Introduction The AQ+7NO is a 4 Electrode NO sensor designed for use in environmental air quality applications
Key Features: 4th electrode for improved baseline v temperature performance
| Output signal | 500±100 nAppm |
| Typical Baseline Range (pure air) | +-100 nA (Net S-A Baseline) |
| T90 Response Time | <40 seconds |
| Measurement Range | 0 -25 ppm |
| Maximum Overload | 50 ppm |
| Repeatability | <+2% NO equivalent |
| Recommended Load Resistor | 20 ohms |
| Resolution | < 10 ppb typical |
| Temperature Range Continuous | -300℃ to +500℃ |
| Pressure Range | 800 to 1200 mbar |
| Operating Humidity Range | 15% to 90% RH |
