Product Details:
|
| Target Gas: | Nitrogen Dioxide (NO2) | Package: | 7 Series |
|---|---|---|---|
| Range: | 0 - 20 Ppm | Output: | 400 ± 100 Nanoamperes/ppm |
| T90 Response Time: | < 60 Seconds | Interface/Pinout: | 1-pin/4-pin |

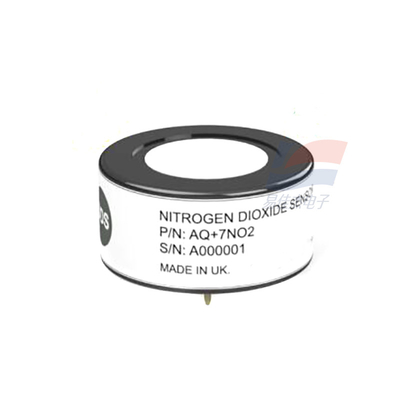

AQ+7NO2 Nitrogen Dioxide NO2 Gas Sensors 4th Electrode Environment Air Quality High Precision
Detailed description:
AQ+7NO2 is a 7-series format nitrogen dioxide sensor equipped with a 4-pin interface. AQ+7NO2 requires a 0V bias voltage. AQ+7NO2 has a measurement range of 0 - 20 ppm, an output current of 400 ± 100 nA/ppm, a response time of less than 60 seconds, and a warranty period of 24 months. The main features of AQ+7NO2 include: high accuracy, strong environmental stability, and excellent price-performance ratio.
Common applications: Air quality
| Output signal | 400+100 nAppm |
| Typical Baseline Range | +/-100 nA (Net $-A Baseline) |
| T90 Response Time | <60 seconds |
| Measurement Range | 0-20 ppm |
| Maximum Overload | 200 ppm |
| Repeatability | <+2% NOz equivalent |
| Recommended Load Resistor | 20 ohms |
| Resolution | <10 ppb typical |
| Temperature Range Continuous | -300℃ to +500℃ |
| Pressure Range | 800 to 1200 mbar |
| Operating Humidity Range | 15% to 90% RH |
