Product Details:
|
| Target Gas: | Ozone (O3) | Package: | 7 Series |
|---|---|---|---|
| Range: | 0 - 1 Ppm | Output: | 400 ± 100 Nanoamperes/ppm |
| T90 Response Time: | < 60 Seconds | Interface/Pinout: | 1-pin/4-pin |

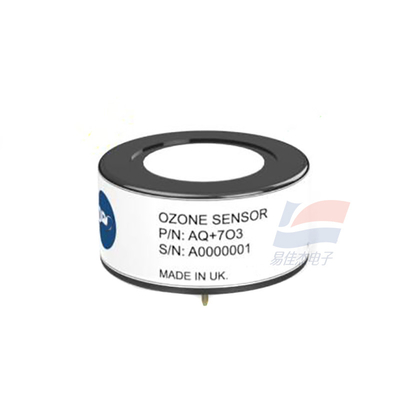

AQ-7O3 Ozone Gas Sensors 7Series 4 Electrode Environment Air Quality High Precision
Key Features:
1. Air Quality Specification, PPB
2. 4th electrode for improved baseline v temperature performance
Detailed Description:
AQ+7O3 O3 is a 7-series specification ozone sensor with a 4-pin interface. AQ+7O3 requires 0V bias voltage. AQ+7O3 has a measurement range of 0 - 1 ppm, an output current of 1700 ± 400 nA/ppm, a response time of less than 60 seconds, and a warranty of 24 months. Key features of AQ+7O3 include: high accuracy, strong environmental stability, and excellent price/performance ratio.
Common Applications: Air Quality
| Output signal | 400+100 nAppm |
| Typical Baseline Range (pure air) | +/-100 nA (Net $-A Baseline) |
| T90 Response Time | <60 seconds |
| Measurement Range | 0 -1 ppm |
| Maximum Overload | 5 ppm |
| Repeatability | <+2% 0s equivalent |
| Recommended Load Resistor | 20 ohms |
| Resolution | <10 ppb typical |
| Temperature Range Continuous | -300℃ to +500℃ |
| Pressure Range | 800 to 1200 mbar |
| Operating Humidity Range | 15% to 90% RH |
