Product Details:
|
| Equivalent: | 0~40°C | Interface: | 3.5mm Headphone Jack |
|---|---|---|---|
| Weight: | Approximately 40 Grams | Operating Temperature Range: | 0 To 50°C |
Product Description:

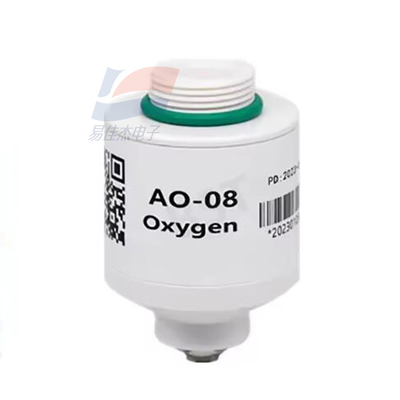

AO-08 Electrochemical Oxygen Sensor Is Used In Medical Equipment To Measure Oxygen Concentration
Features:
Product model: A0-08
Working principle: Partial pressure electrochemistry
Output voltage :9-13mV(in air)
Measurement range :0-100%
Response time (T):<15 seconds
Linearity: Linearity over the full range
Temperature compensation :<2%0, equivalent (0~40°C)
Load resistance: >10kQ
Interface: 3.5mm headphone jack
Shell material: White ABS
Weight: Approximately 40 grams
Operating temperature range: 0 to 50°C
Working pressure range: 0.5-2.0bar
Working humidity range:
Long-term drift: 99%RH(no condensation)
Service life: 1.5x106%0 hours (20°C)
0.8x106%O, hours (40°C)
Warranty period: 13 months from the date of shipment
Thirteen months from the date of shipment
Specifications:
| Load resistance | 10k |
| Power supply voltage (Min) | 4.5V |
| Shell material | White ABS |
| Long-term drift | 99%RH(no condensation) |
