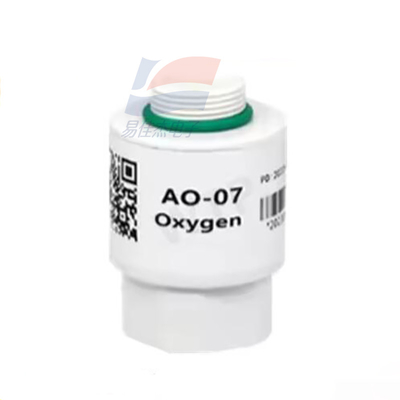

YJJ AO-07 Electrochemical Oxygen Sensor with Oxygen Battery Can Replace MOX-3

Product Description:

Oxygen Battery Of The AO-07 Electrochemical Oxygen Sensor Can Replace MOX-3

YJJ MOX-3 MOX3 AA829-M10 Respirator Medical Oxygen Battery Oxygen Sensor

Features:

I. Product Overview
The AO-07 oxygen sensor is an electrochemical sensor specifically designed for measuring oxygen concentration in medical equipment. Its interface model is 5520257-2. It adopts a molded body design and features rapid response and long service life. It can be replaced domestically, providing customers with excellent quality while reducing costs. The difference between this sensor and the AO-06 oxygen sensor lies in the different pin definitions.

Ii. Application

The AO-07 oxygen sensor does not require an external power supply when in operation. It has all undergone professional and accurate product calibration and temperature compensation before leaving the factory. It can be used as the sensing component of oxygen analyzers, such as oxygen generator control devices, medical ventilators, anesthesia equipment, incubators, etc.

Iii. Product Features
Full-range linear output
• No external power supply is required for operation
Temperature compensation
"Quick response"
Strong anti-interference ability
Accurate and reliable

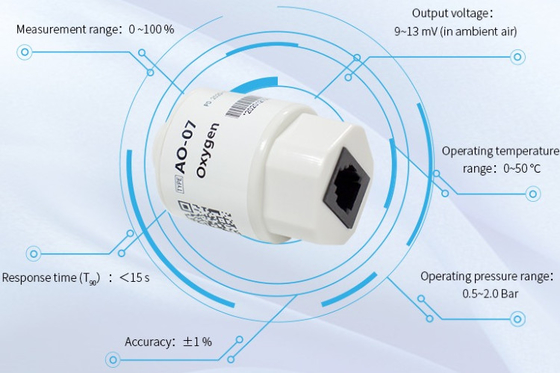

Technical parameters
Output voltage: 9-13 mV (in air)
Measurement range: 0-100%
Temperature compensation < 2% O² equivalent (0℃-40℃)
Response time (T90) <15 seconds
Working temperature range
0℃ to +50℃
Range of working pressure
0.5 Bar - 2.0 Bar
Operating humidity range: 0% - 99%RH (no condensation)

Shenzhen Yijiajie Electronic Technology Co., Ltd. mainly serves OEM manufacturers in the sales of sensor products. In the field of sensing and control products, we provide product sales and technical support services in China for globally renowned manufacturers. We are also currently a professional supplier of sensing and control products in China and Hong Kong. The head office was founded in Hong Kong in 2002. The Shenzhen company is located at the intersection of Shennan Middle Road and Huaqiang North Road in Shenzhen. Meanwhile, the company has a large amount of spot inventory in Shenzhen and Hong Kong and can place orders directly from abroad with prompt delivery. We hope to cooperate with domestic related manufacturers to provide your company with high-quality and satisfactory products and make your products more competitive. We sincerely look forward to cooperating with you.

Specifications:
