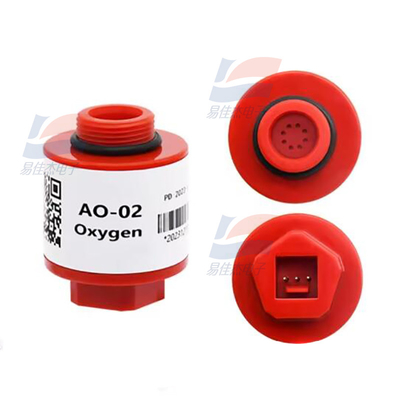

YJJ AO-02 Electrochemical Oxygen Sensor For Various Oxygen Concentration Measurements And Can Replace AO2

Certification
China ShenzhenYijiajie Electronic Co., Ltd. certification
China ShenzhenYijiajie Electronic Co., Ltd. certification
I'm Online Chat Now

YJJ AO-02 Electrochemical Oxygen Sensor For Various Oxygen Concentration Measurements And Can Replace AO2

YJJ AO-02 Electrochemical Oxygen Sensor For Various Oxygen Concentration Measurements And Can Replace AO2
YJJ AO-02 Electrochemical Oxygen Sensor For Various Oxygen Concentration Measurements And Can Replace AO2 YJJ AO-02 Electrochemical Oxygen Sensor For Various Oxygen Concentration Measurements And Can Replace AO2

Large Image :  YJJ AO-02 Electrochemical Oxygen Sensor For Various Oxygen Concentration Measurements And Can Replace AO2

Product Details:
Place of Origin: CHINA
Brand Name: YJJ
Model Number: AO-02
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: canning
Delivery Time: 3 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2200

YJJ AO-02 Electrochemical Oxygen Sensor For Various Oxygen Concentration Measurements And Can Replace AO2

Description
Measurement Range: 0 To 100% Output Voltage: 9-13mV (in Air)
Response Time: < 15 Seconds (T90) Working Pressure Range: 0.5 To 2.0Bar
Highlight:

AO-02 Electrochemical Oxygen Sensor

,

AO2 Electrochemical Oxygen Sensor

,

Various Oxygen Concentration Measurements Oxygen Sensor

Product Description:

AO-02 Electrochemical Oxygen Sensor Is Used For Various Oxygen Concentration Measurements And Can Replace AO2



https://mao.ecer.com/test/oxygengassensors.com/videos-52062458-yjj-ao2-ptb-18-10-automotive-oxygen-sensor-response-time-5-seconds.html



Features:

Technical parameters
Output voltage: 9-13mV (in air)
The measurement range is 0 to 100%
Response time < 15 seconds (T90)
Temperature compensation < 2%O2 equivalent (0-40℃)
Linearity is linear throughout the full range
The operating temperature range is 0 to 50℃
The working pressure range is 0.5 to 2.0Bar
The working humidity range is 0-99%RH without condensation

I. Product Overview

The AO-02 oxygen sensor is an electrochemical sensor used for detecting oxygen concentration. Its interface model is the Molex 3-pin connector. It adopts a molded main body design and features rapid response and long service life.

Ii. Application

The AO-02 oxygen sensor does not require an external power supply when in operation. It has all undergone professional and accurate product calibration and temperature compensation before leaving the factory. It is suitable for various instruments related to oxygen concentration detection and is widely used in fields such as automobiles, environmental protection, coal mines, petrochemicals, etc., such as motor vehicle exhaust detection instruments, waste gas environmental protection detection instruments, oxygen index testing instruments, oxygen alarms, etc.



Iii. Product Features

Full-range linear output
It does not require an external power supply when in operation
Temperature compensation

"Quick response"

Accurate and reliable

Strong anti-interference ability



Shenzhen Yijiajie Electronic Technology Co., Ltd. mainly serves OEM manufacturers in the sales of sensor products. In the field of sensing and control products, we provide product sales and technical support services in China for globally renowned manufacturers. We are also currently a professional supplier of sensing and control products in China and Hong Kong. The head office was founded in Hong Kong in 2002. The Shenzhen company is located at the intersection of Shennan Middle Road and Huaqiang North Road in Shenzhen. Meanwhile, the company has a large amount of spot inventory in Shenzhen and Hong Kong and can place orders directly from abroad with prompt delivery. We hope to cooperate with domestic related manufacturers to provide your company with high-quality and satisfactory products and make your products more competitive. We sincerely look forward to cooperating with you.



Specifications:

Response time (T90) <15 seconds
Working pressure range 0.5-2.0bar
Shell material White ABS
Temperature compensation < 2%O2 equivalent (0-40℃)
