Product Details:
|
| Type: | Oxygen Sensor | Use/application: | Industrial/medical |
|---|---|---|---|
| Measuring Range: | 0%-100% Oxygen | Pressure Range: | 0.6 Bar-2 Bar |
| Operating Temperature: | 0 ° C+50 ° C | Response Time: | Less Than 12 Seconds |
| Highlight: | Medical Oxygen Gas Sensor,Industrial Oxygen Gas Sensor,Excellent Signal Stability Oxygen Gas Sensor |
||

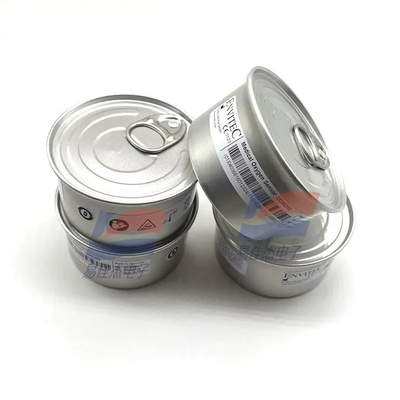

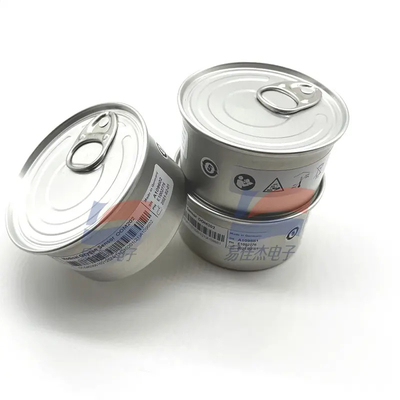

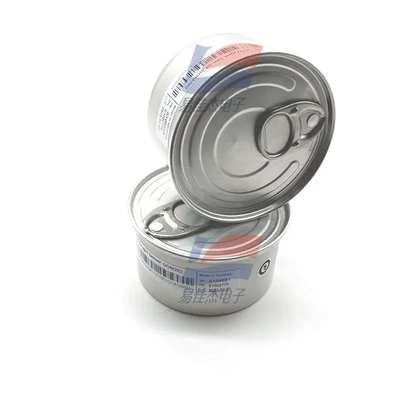

OOM202 Gas Oxygen Sensors Industrial Medical Excellent Signal Stability
Use the advantages:
• Compliant with European MDD (CE certification)
• Meets ISO 80601-2-55
• Designed and manufactured according to EN ISO 13485
• Accurate and reliable fast response
• Resistant to N2O
• Excellent signal stability
• High product quality
• Short delivery times
• Technical support
• Made in Germany
• FDA cleared
Datasheet
| Measurement range | 0 %-100 % oxygen (at atmospheric pressure) |
| Nominal sensor lifetime | ≥ 1 000 000 % volume oxygen hours |
| Output in ambient air | 13 mV ... 16 mV |
| Electrical interface | 3 pin (Molex® 22-11-1031) |
| Accuracy meets | 80601-2-55 requirements |
| Repeatability | < 1 % volume O2 at constant temperature and pressure |
| Linearity error | < 3 % relative |
| Response time | < 12 s to 90 % of final value |
| Zero offset voltage | < 200 µV in 100 % nitrogen, applied for 5 min |
| Cross interference meets | 80601-2-55 requirements |
| Influence of humidity | -0.03 % rel. per % RH at 25 °C |
| Pressure range | 0.6 bar-2 bar (ppO2 0-1250 mbar O2) |
| Influence of pressure | Proportional to change in oxygen partial pressure |
