HCN 3E 30 F 1639-231-30049 Hydrogen Cyanide Gas Sensor Amperometric 3 Electrode Sensor Cell

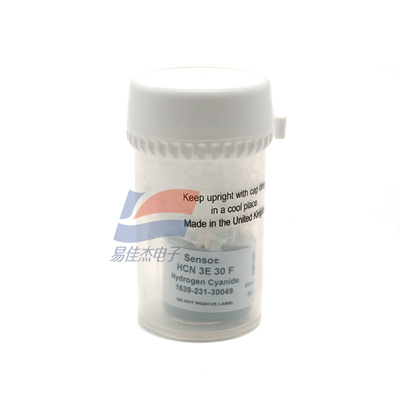

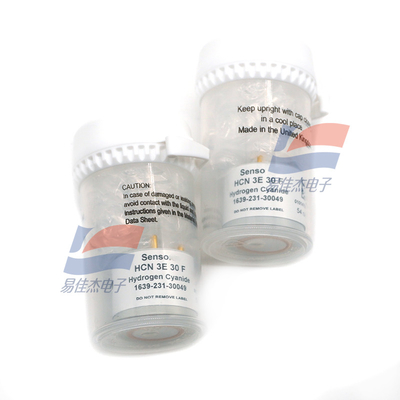

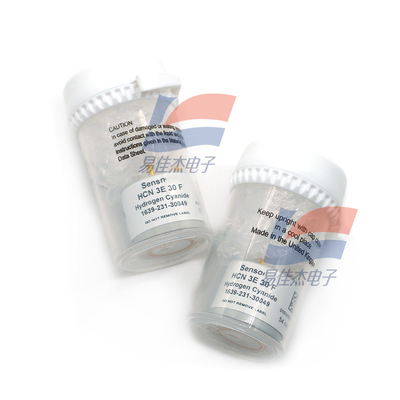

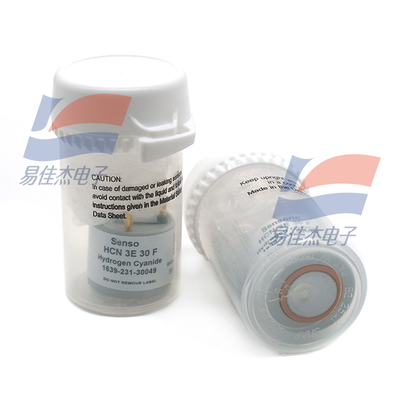

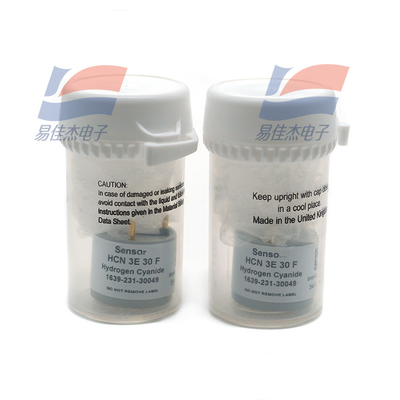

Large Image : HCN 3E 30 F 1639-231-30049 Hydrogen Cyanide Gas Sensor Amperometric 3 Electrode Sensor Cell

Product Details:

Place of Origin:	UK
Brand Name:	CITY
Model Number:	HCN 3E 30 F 1639-231-30049

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Package
Delivery Time:	3-5workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	2000pcs/Month

Contact Now

HCN 3E 30 F 1639-231-30049 Hydrogen Cyanide Gas Sensor Amperometric 3 Electrode Sensor Cell

Description

Measuring Range:

0 – 30 Ppm

Sensitivity Range:

60 NA/ Ppm ± 15 NA/ Ppm

Zero Current At:

20°C < ± 15 NA

Resolution At:

20°C < 0.2 Ppm

Highlight:

Amperometric Hydrogen Cyanide Gas Sensor

1639-231-30049 Hydrogen Cyanide Gas Sensor

3 Electrode Hydrogen Cyanide Gas Sensor

HCN 3E 30 F 1639-231-30049 Hydrogen Cyanide Gas Sensor Amperometric 3 Electrode Sensor Cell

FEATURES
Amperometric 3 electrode sensor cell
Very stable zero reading
Very selective
Highly sensitive
Fixed organic gel electrolyte

TYPICAL APPLICATIONS
TV-monitoring, leakage detection
Portable & fixed point applications
Gold mining

Long Term Sensitivity Drift	< 5% per month
Temperature Range	-40°C to +40°C
Humidity Range	15–95% r.H., non–condensing
Effect of Humidity	No effects
Sensor Life Expectancy	> 18 months
Warranty Warranty	12 months

HCN 3E 30 F 1639-231-30049 Hydrogen Cyanide Gas Sensor Amperometric 3 Electrode Sensor Cell 0
