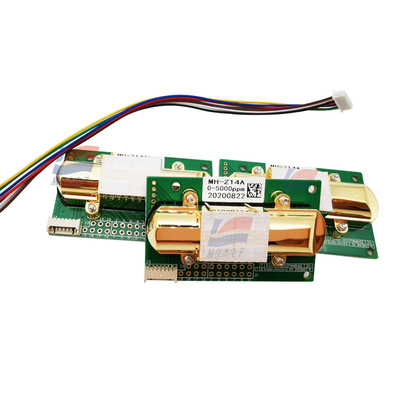

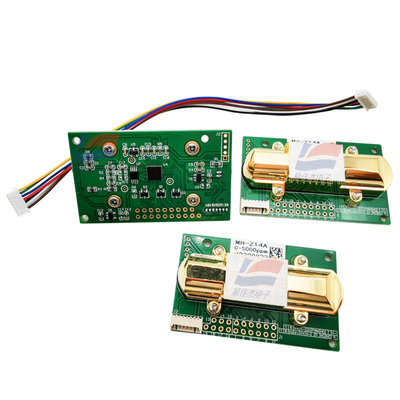

MH-Z14A NDIR CO2 Gas Carbon Dioxide Sensors Universal Small Size

Large Image : MH-Z14A NDIR CO2 Gas Carbon Dioxide Sensors Universal Small Size

Product Details:

Place of Origin:	China
Brand Name:	Winsen
Model Number:	MH-Z14A

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Delivery Time:	3-5workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000/pcs/month

Contact Now

MH-Z14A NDIR CO2 Gas Carbon Dioxide Sensors Universal Small Size

Description

Working Voltage:

4.5V~5.5V DC

Average Current:

<60mA (@5V Input)

Peak Current:

150mA (@5V Input)

Interface Level:

3.3V (compatible With 5V)

Highlight:

NDIR CO2 Gas Carbon Dioxide Sensors

Small Size CO2 Gas Sensors

MH-Z14A NDIR CO2 Gas Sensors

MH-Z14A NDIR CO2 Gas Carbon Dioxide Sensors Universal Small Size

The MH-Z14A NDIR infrared gas sensor is a general-purpose small size sensor that uses the non-dispersive infrared (NDIR) principle to detect carbon dioxide (CO2) in the air with good selectivity, oxygen independence and long service life. Built-in temperature compensation; and has digital output and PWM output. This general-purpose infrared gas sensor tightly integrates mature infrared absorption gas detection technology, sophisticated optical circuit design and excellent circuit design.

Measuring range	0~10000ppm
Warm-up time	3 minutes
Response time T90	<120 seconds
Working temperature	0℃～50℃
Working humidity	0～90%RH (no condensation)
Weight	15g
Lifespan	>5 years

MH-Z14A NDIR CO2 Gas Carbon Dioxide Sensors Universal Small Size 0
