Oxygen O2 Gas Sensor OOM201 E01-00-0014 For Control Device Of Oxygen Concentrators

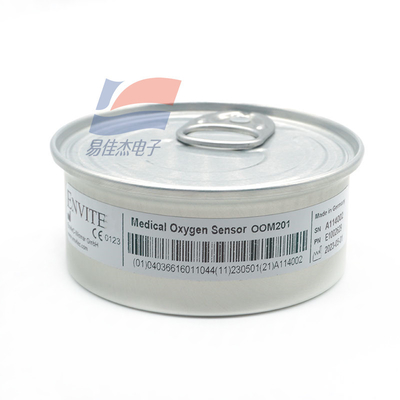

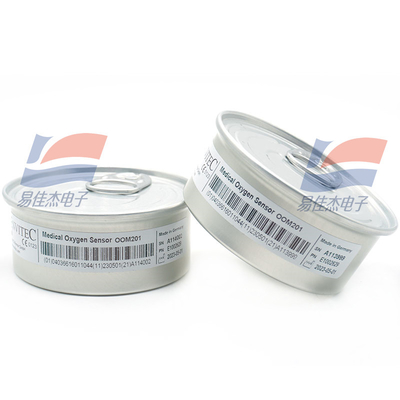

Large Image : Oxygen O2 Gas Sensor OOM201 E01-00-0014 For Control Device Of Oxygen Concentrators

Product Details:

Place of Origin:	USA
Model Number:	OOM201

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Paper box
Delivery Time:	3-5work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000pcs

Contact Now

Oxygen O2 Gas Sensor OOM201 E01-00-0014 For Control Device Of Oxygen Concentrators

Description

Expected Sensor Lifetime:	> 2 Years	Weight:	Approximately 28 Grams
Recommended Load:	≥ 10 KOhm	Recommended Storage:	5°C -15°C
Storage Temperature:	-20°C-50°C	Operating Temperature:	0°C - 50°C
Highlight:	OOM201 Oxygen Gas Sensor , Control Device O2 Gas Sensor , E01-00-0014 Oxygen Gas Sensor

Oxygen (O2) Gas Sensor OOM201

ADVANTAGES:

• High accuracy and reliability in response
• Resistant to N2O
• Enhanced signal stability and product quality
• Short delivery times
• Technical support
• Made in Germany
• FDA cleared

INTENDED USE:

EnviteC Medical Oxygen Sensors are intended for use as the oxygen sensing component of an oxygen analyzer that measures oxygen concentration in breathing gas mixtures in the following applications:

• control device of oxygen concentrators
• medical ventilators
• anaesthesia systems and respirators
• incubators
• gas supply systems

Measurement range	0 % ... 100 % oxygen (at atmospheric pressure)
Nominal sensor lifetime	> 500,000 % volume oxygen hours
Initial output signal range in ambient air	14 mV ... 20.7 mV (dual cathode), load 600 Ohms
Electrical interface	gold-plated slip rings
Accuracy	meets ISO 80601-2-55 requirements
Repeatability	< 1 % volume O2 at constant temperature and pressure

Oxygen O2 Gas Sensor OOM201 E01-00-0014 For Control Device Of Oxygen Concentrators 0
