Product Details:
|
| Operating Temperature: | 0°C-50°C | Storage Temperature: | -20°C- 50°C |
|---|---|---|---|
| Recommended Storage: | 5°C - 15°C | Recommended Load: | ≥ 10 KOhm |
| Expected Sensor Lifetime: | >2.5 Years | Weight: | Approximately 28 Grams |
| Highlight: | Respirators O2 Gas Sensor,OOM102 E01-00-0019 Oxygen Gas Sensor,Anaesthesia Systems Oxygen Gas Sensor |
||

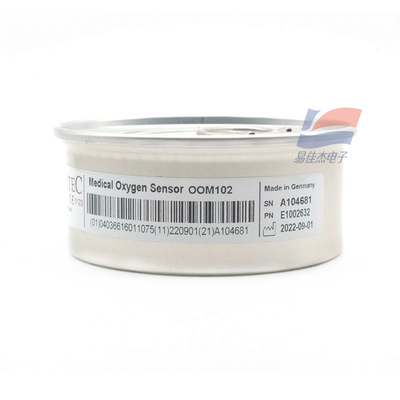

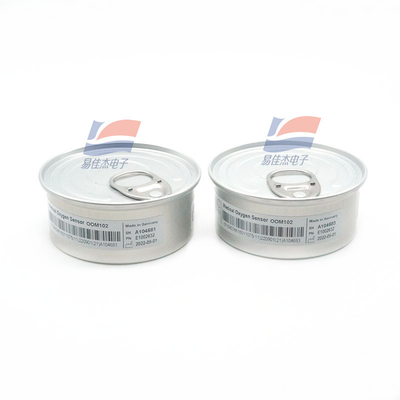

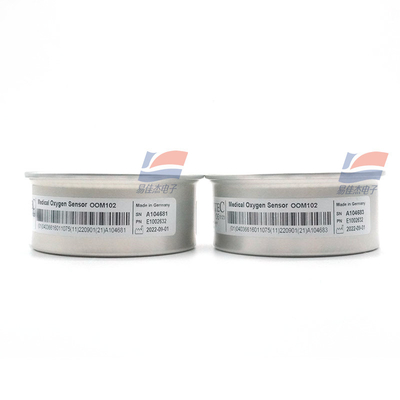

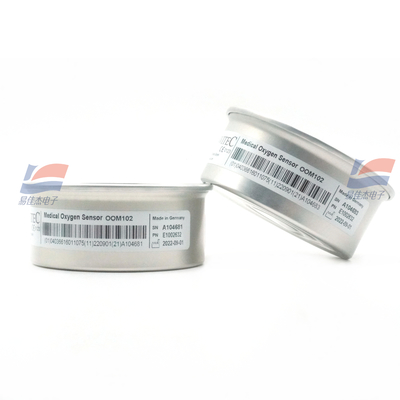

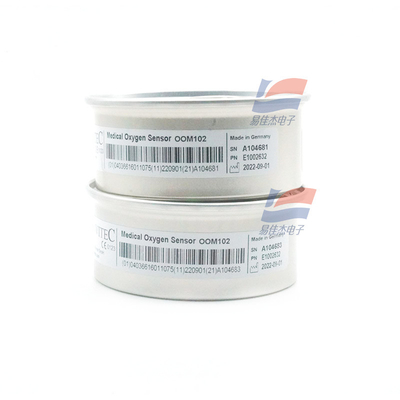

Oxygen (O2) Gas Sensor OOM102 E01-00-0019 For Anaesthesia Systems And Respirators
FROM STANDARD SENSORS TO CUSTOMIZED SENSORS:
Experienced engineers work closely with customers to analyze their requirements when designing sensors for standard and OEM applications. Throughout the design process, support is provided right up to the final integraton of the solution. Our engineers can customize sensors characterized by a maximum possible degree of precision, for example fit, form, and signal behaviors such as signal range or integrated temperature compensation.
ADVANTAGES:
• High accuracy and reliability in response
• Resistant to N2O
• Enhanced signal stability and product quality
• Short delivery times
• Technical support
• Made in Germany
• FDA cleared
INTENDED USE:
EnviteC Medical Oxygen Sensors are intended for use as the oxygen sensing component of an oxygen analyzer that measures oxygen concentration in breathing gas mixtures in the following applications:
• control device of oxygen concentrators
• medical ventilators
• anaesthesia systems and respirators
• incubators
• gas supply systems
| Accuracy | meets ISO 80601-2-55 requirements |
| Repeatability | < 1 % volume O2 at constant temperature and pressure |
| Linearity error | < 3 % relative |
| Response time | < 12 s to 90 % of final value |
| Zero offset voltage | < 200 μV in 100 % nitrogen, applied for 5 min |
| Cross interference | meets ISO 80601-2-55 requirements |
