Product Details:
|
| Working Power Supply Current: | 10 MA | Maximum Output Current: | 20 MA |
|---|---|---|---|
| Minimum/maximum Operating Point: | 100 G To 180 G | Minimum/Maximum Release Point (Brp): | -180 G To -100 G |
| Working Power Supply Voltage: | 12V | Minimum Operating Temperature: | -40 ° C |
| Highlight: | Bipolar Latched Hall Effect Sensor,YJJ SS466A Hall Effect Sensor |
||
Product Description:

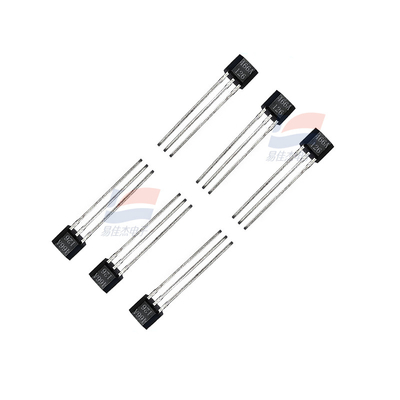

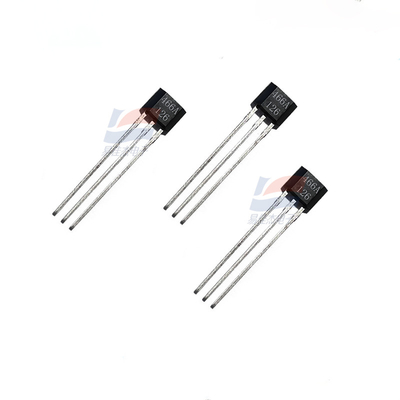

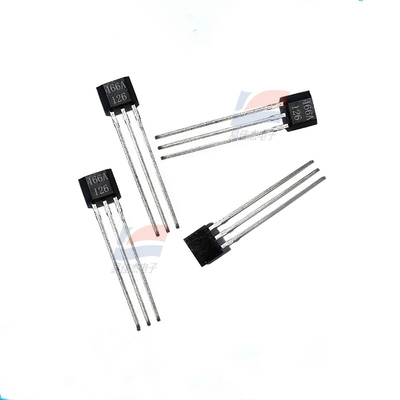

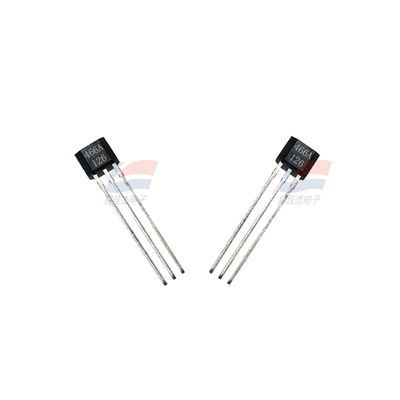

SS466A Bipolar Latched Hall Effect Sensor is Used in Electric Glass Window Lifters
Features:
3.8-30 vDC supply voltage
Digital current sinking output
3 pin in-line PCB terminals
Quad-Hall design virtually eliminatesmechanical stress effects
Temperature compensatedmagnetics
Operate/release points can becustomized
Bipolar, unipolar, latching magnetics
High output current capability50 mA absolute maximum
Operate/release points symmetricalaround zero gauss (bipolar/latch)
Operating temperature range of-40to +150°C ( 40 to +302°F)Package material: Plaskon 3300H
Surface mount version available:SS400-S (with cut and formed leads)
Manufacturer:
Product types: Board computer interface Hall effect/magnetic sensor
RoHS:
Type: Bipolar
Working power supply current: 10 mA
Maximum output current: 20 mA
Minimum/maximum operating point: 100 G to 180 G
Minimum/Maximum release point (Brp) : -180 G to -100 G
Working power supply voltage: 12 V
Minimum operating temperature: -40 ° C
Maximum operating temperature: + 150 ° C
Installation style: Through Hole
Package/Box: TO-92-Flat-3
Trademark:
Product type: Board Mount Hall Effect/Magnetic Sensors
1000
Subcategory: Sensors
Power supply voltage - Maximum: 30 V
Power supply voltage - Minimum: 3.8V
Unit weight: 120 mg
Specifications:
| Installation style | Through Hole |
| Power supply voltage - Maximum | 30 V |
| Power supply voltage - Minimum | 3.8V |
| Unit weight | 120 mg |
