GS+5CO Carbon Monoxide CO Gas Sensor Use In Portable Emissions Gas Detectors High Stability

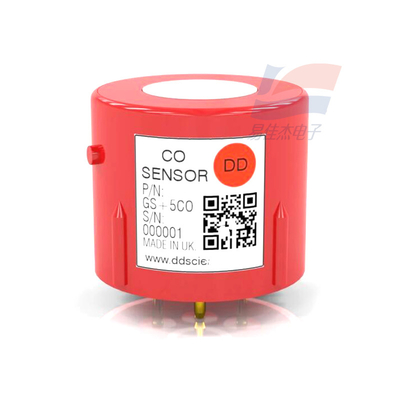

Large Image : GS+5CO Carbon Monoxide CO Gas Sensor Use In Portable Emissions Gas Detectors High Stability

Product Details:

Place of Origin:	UK
Brand Name:	DDS
Model Number:	GS+5CO

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Package
Delivery Time:	3-5workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	3000/pcs/month

Contact Now

GS+5CO Carbon Monoxide CO Gas Sensor Use In Portable Emissions Gas Detectors High Stability

Description

Output Signal:

30 ± 6 NA / Ppm

Typical Baseline Range (pure Air):

±10 Ppm CO Equivalent

Filter Capacity:

> 200,000 Ppm Hours NO

T90 Response Time:

< 30 Seconds

Highlight:

GS+5CO Carbon Monoxide CO Gas Sensor

Portable Emissions Gas Detectors

High Stability CO Gas Sensor

GS+5CO Carbon Monoxide CO Gas Sensor Use In Portable Emissions Gas Detectors High Stability

Introduction
The GS+5C0 is a premium high quality robust CO sensor, ideal for use in portable emissions gas detectors

Key Features:
High stability, fast response and recovery, robust environmental performance.

Measurement Range	0 - 4,000 ppm
Maximum Overload	20,000 ppm
Repeatability	< ±1% CO equivalent
Recommended Load Resistor	10 ohms
Resolution (Electronics dependent)	< 1 ppm typical
Temperature Range Continuous	-20oC to +50oC
Pressure Range	800 to 1200 mbar
Operating Humidity Range	15% to 90% RH

GS+5CO Carbon Monoxide CO Gas Sensor Use In Portable Emissions Gas Detectors High Stability 0
