Product Details:
|
| Photosensitive Area: | 2.4 × 2.4 Mm | Package: | Metal |
|---|---|---|---|
| Package Category: | TO-5 | Cooling: | Uncooled |
| Reverse Voltage (max): | 20 V | Spectral Response Range: | 190 To 1100 Nm |
| Highlight: | Integrated Feedback Resistor Silicon Photodiode,Low Noise Silicon Photodiode,Preamplifier Silicon Photodiode |
||

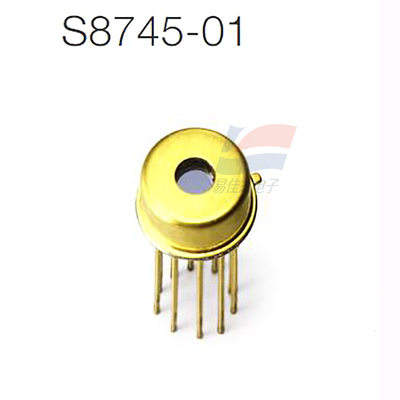

S8745-01 Silicon Photodiode With Preamplifier Low Noise Sensor Integrated Feedback Resistor And Capacitor
This is a low-noise sensor that consists of a silicon photodiode, an operational amplifier, a feedback resistor, and a capacitor, integrated in a small package. It can be used for low-light measurements in analytical equipment and measuring equipment by simply connecting a power supply. The photodiode's light-sensitive area is internally connected to the GND terminal, so it has strong immunity to EMC noise.
Features
- Low-power FET input operational amplifier
- Built-in Rf=1 GΩ and Cf=5 pF
- Variable gain by externally connected resistors
- Low noise, low NEP
- Shielded package
- High immunity to EMC noise
Applications
Spectrophotometry
Optical measurement equipment
| Photosensitive Area | 2.4*2.4mm |
| Package | TO-5 |
| Window Material | Quartz Glass |
| Supply Voltage | ±20V |
| Power Dissipation | 500mW |
| Operating Temperature | -20 to +60 ℃ |
| Storage Temperature | -30 to + 80℃ |
