Product Details:
|
| Maximum Overrun Range: | 30% | Signal Output: | 0.1 0.02mA |
|---|---|---|---|
| Response Time (T90): | < 15s | Load Resistance: | 100 Ω |
| Highlight: | Electrochemical Carbon Monoxide Gas Sensor,7E/F AB710-40V Gas Sensor,7EF AB710-40V Gas Sensor |
||
Product Description:

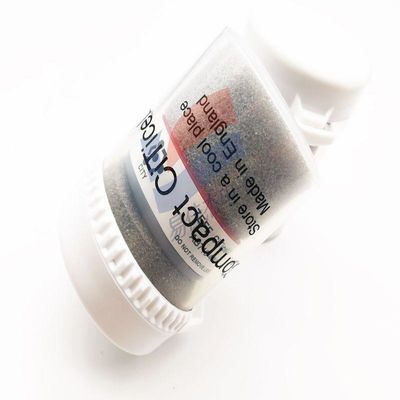

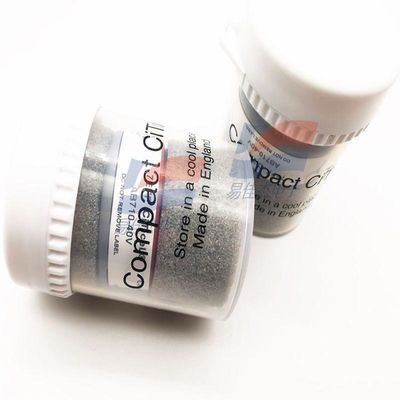

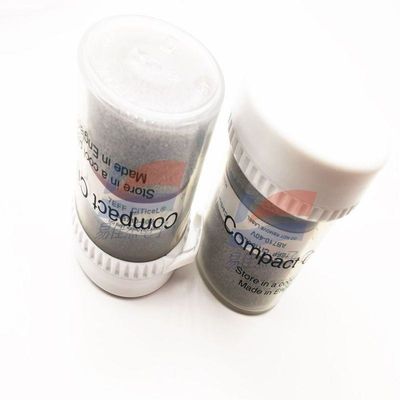

7EFF 7E/F AB710-40V 7EF 7E/FF Mine CO Electrochemical Carbon Monoxide Gas Sensor
Features:
Carbon monoxide sensor - 7EFF 7E/F 7EF 7E/FF Carbon monoxide sensor CO gas sensor
Product Model CLE-0013-700
Range 0 to 1000 PPM
Load 2000 PPM
Sensitivity 0.085 ± 0.025mA/ PPM
Baseline (20 oC) < 0.2 A
Baseline drift of 0 to 3 PPM
(20 to 50 oC) -
The resolution is 0.5 PPM
Response time (T90) 30 seconds
Linearity
Long-term stability < 2% signal value/month
The working conditions
Operating temperature -20 oC to 50 oC
Operating humidity 15 to 90%RH (non-condensing)
Working pressure 90 to 110 kPa
Bias 0 mV
Storage time: 6 months (in *** box)
Storage temperature 0 oC to 20 oC
Use life in air for 2 years
Specifications:
| Operating temperature | -20 oC to 50 oC |
| Operating humidity | 15 to 90%RH |
| Working pressure | 90 to 110 kPa |
| Bias | 0 mV |
