Product Details:
|
| Electrode Material: | Ni | Weight: | 2.7 G |
|---|---|---|---|
| [Maximum Rating]: | 50 MA | Sensitivity Is Typical: | 480 Min-1 |
| Background Maximum: | 5 Min-1 | Discharge Start-up Voltage (DC): | 440 V |
| Highlight: | 2.7 g UVTRON R244,High Sensitivity UVTRON R244,480 min-1 UVTRON R244 |
||

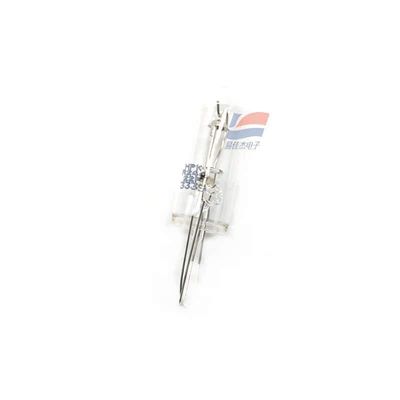

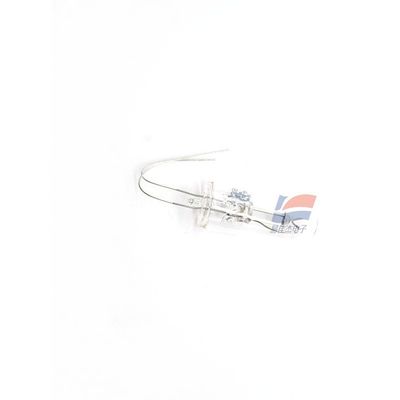

UVTRON R244
UVTRON UV on/off detectors utilizing the metallic photoelectric effect and the gas multiplication effect. It has a narrow spectral sensitivity of 185 nm to 260 nm and is completely insensitive to visible light. Unlike semiconductor detectors, it does not require a visible light cut-off filter, making it very convenient to use.
| Spectral Sensitivity Characteristics (Short) | 185 nm |
| Spectral Sensitivity Characteristics (Long) | 260 nm |
| [Maximum Rating] Supply Voltage (DC) | 575 V |
| [Maximum Rating] The average discharge current | 3 mA |
| Discharge start-up voltage (DC) | 440 V |
| [Recommended Operating Parameters] Supply Voltage (DC) | 500±50 V |
| [Recommended Operating Parameters] average discharge current | 0.3 mA |
| [Recommended Operating Parameters] minimum quenching time | 3 ms |
