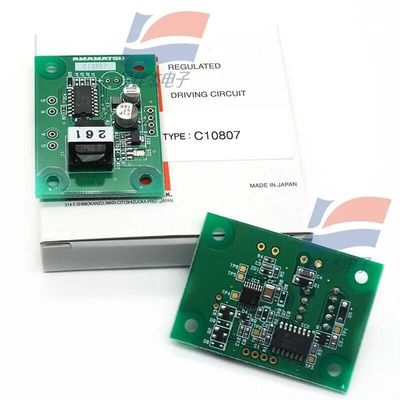

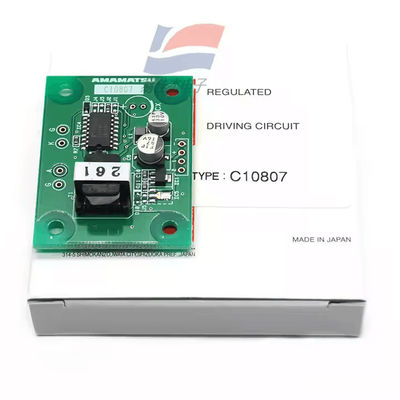

                                                 C10807 UVTRON® DRIVING CIRCUIT For Fire And Arson Surveillance

Compact, Lightweight, Low Current Consumption Ideal for Fire and Arson Surveillance

APPLICATIONS:

●Flame detectors for gas and oil lighters

●Fire alarms

●Arson watch monitor

●Combustion monitors for burners

●Electric spark detector

FEATURES:

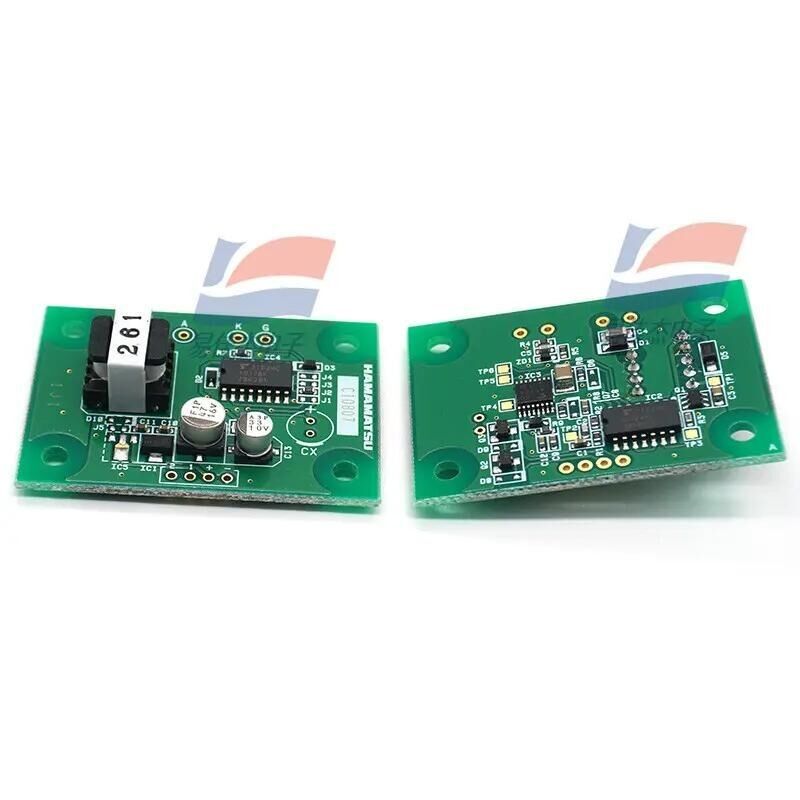

C10807 series was developed for UVTRON driving circuit as alternative to C3704, that is also used as singnal processing circuits. By using a double-sided printed circuit board we cut the area size to half that of conventional drive circuits. Since the high-voltage supply and signal processor are mounted on the same circuit board, the C10807 can be operated as a high-sensitivity UV sensor just by connecting a UVTRON and supplying a low DC voltage. The signal processing circuit cancels out background discharges which may occur in the UVTRON due to natural excitation light (cosmic rays, solar UV rays, etc.). This minimizes erroneous detection so the C10807 output signal can be used without additional filtering. Combining the C10807 with a high-sensitivity "UVTRON R9533, R2868" (sold separately) for use as a flame detector yields sensitivity capable of detecting the flame from a cigarette lighter (flame length 25 mm) even at distances up to 5 meters away.
