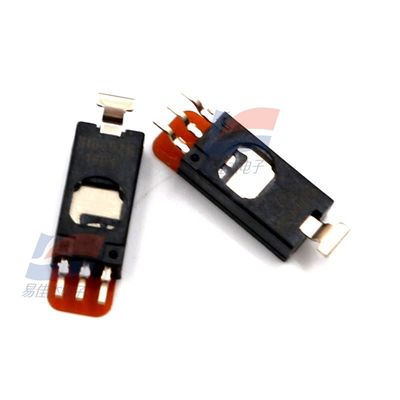

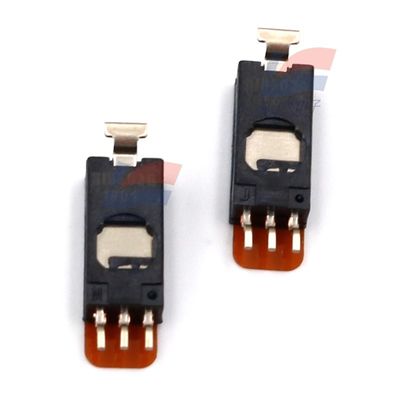

HIH-5030-001 HIH5030-001 Low-voltage humidity sensor with 2.7V Minimum Power Supply

                                         HIH-5030-001 HIH5030-001 Low-voltage humidity sensor

Overview:
The operating voltage of the HIH-5030/5031 series of low-voltage humidity sensors is as low as 2.7V. It is highly suitable for battery-powered systems with a typical voltage of 3V.

HIH 5030/5031 improves our existing 5V SMD (Surface Mount Component) wet Degree sensor products. SMD tape packaging is convenient for large-scale use and automatic assembly production. The difficulty of aligning through holes on printed circuit boards has been eliminated.

The HIH 5030/5031 series humidity sensors are designed specifically for large-scale OEM (original equipment) Users of the manufacturer.

Through the nearly linear voltage output of this sensor, it can be directly input to the controller Or other equipment. The typical operating current is only 200μA, making the HIH-5030/5031 series It is highly suitable for applications of various low-power and battery-powered operating systems.

The close interchangeability of sensors reduces or eliminates the calibration costs of OEM production.

The HIH-5030/5031 series provides RH (relative humidity) sensitivity of the instrument grade It features competitive prices and solderable SMD packaging.

HIH-5030 is an integrated circuit humidity sensor with a housing, while HIH-5031 is off-belt The shell, anti-condensation integrated circuit humidity sensor, equipped with a hydrophobic filter, enables This sensor can be used in various condensation environments, including industrial, medical and commercial ones In.

This RH sensor is a laser-corrected thermosetting polymer with an integrated signal processing unit Capacitive sensing element.
