3.6 mA Current Consumption and Bipolar Magnetism YJJ SS41F6 Digital Hall Effect Position Sensor for Precise Positioning

Product Description:

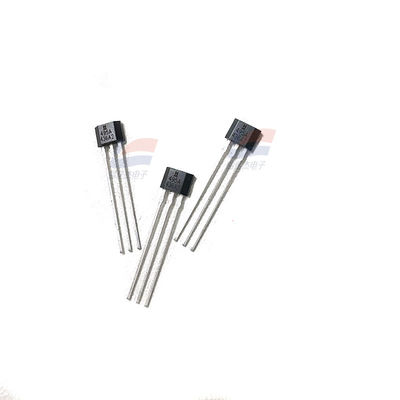

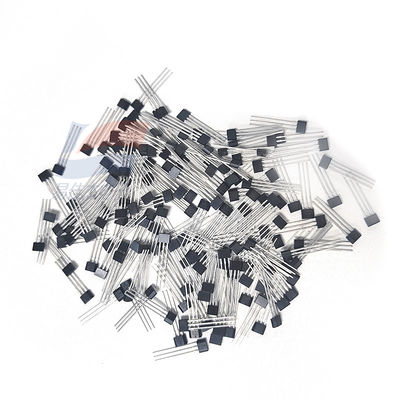

YJJ SS41F6 Bipolar Digital Hall Effect Position Sensor

Features:

SS41F6 is a high-voltage, ESD (electrostatic Discharge) protected bipolar digital Hall effect position sensor integrated circuit. The following is a detailed introduction to the SS41F6 sensor:

I. Working Principle

The SS41F6 sensor integrated circuit is a multifunctional digital Hall effect component that operates based on the magnetic field provided by a permanent magnet or an electromagnet and can respond to the alternating north and south magnetic poles.

Ii. Main Features

1. Wide power supply voltage range: The SS41F6 sensor can provide stable operation within a power supply voltage range of 4.5Vdc to 60Vdc. The built-in regulator ensures stable performance within this wide voltage range.

2. Power polarity protection: Its internal circuit system has the function of preventing damage to the sensor caused by accidental inversion of power voltage polarity, enhancing the reliability and safety of the product.

3. Digital current sink output: The SS41F6 adopts a digital current sink output mode. The current sink output voltage with an open collector can be conveniently connected to various electronic circuits.

4. Flat TO-92 packaging: The product is packaged in a flat TO-92 style. This packaging form is conducive TO the installation and integration of the product.

Iii. Typical Applications

Due to the above-mentioned features of the SS41F6 sensor, it is suitable for a variety of occasions that require magnetic field detection and position control, such as:

Contactless switch control of DC brushless motors.

2. Position control current sensor.

3. Isolation detection and rotational speed detection, etc.

Iv. Performance Parameters

The specific performance parameters of the SS41F6 sensor may vary depending on the production batch and the specific application environment. Therefore, in practical applications, it is recommended to refer to the product manual or contact the manufacturer to obtain the most accurate information.

V. Precautions for Use

When using the SS41F6 sensor, ensure that the power supply voltage is within the specified range and avoid reversing the polarity.

2. The sensor should be installed at a position far away from strong magnetic field interference to ensure the accuracy of the measurement.

When connecting circuits, pay attention to the correctness and firmness of the wiring to avoid problems such as poor contact or short circuits.
