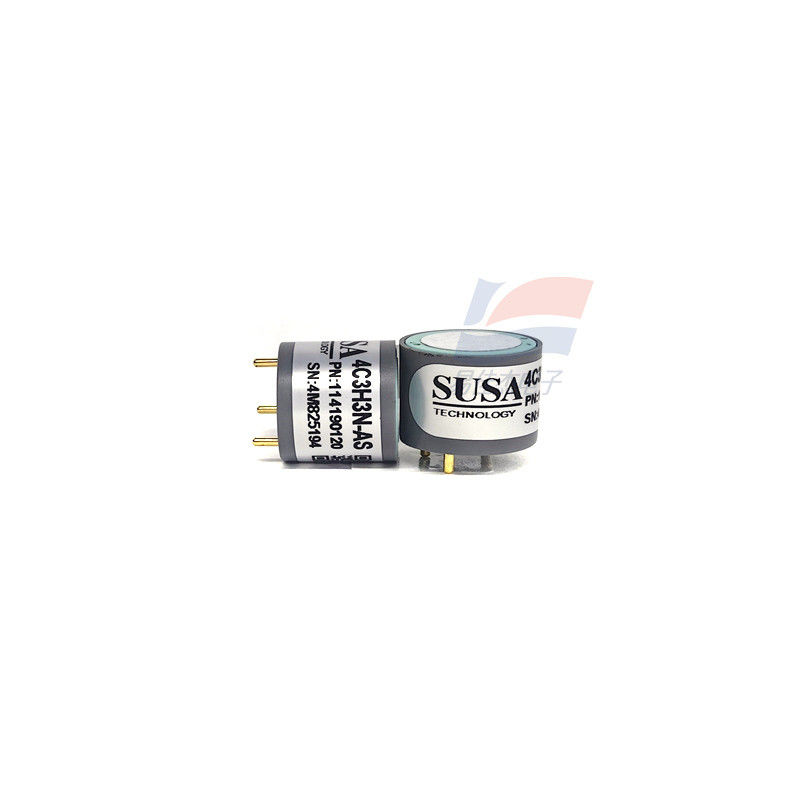

4C3H3N-AS 114-190-120 Acrylonitrile Gas Sensor Electrochemical Three Electrodes

Large Image : 4C3H3N-AS 114-190-120 Acrylonitrile Gas Sensor Electrochemical Three Electrodes

Product Details:

Place of Origin:	China
Brand Name:	SUSA
Model Number:	4C3H3N-AS 114-190-120

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Package
Delivery Time:	3-5workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	2000pcs/Month

Contact Now

4C3H3N-AS 114-190-120 Acrylonitrile Gas Sensor Electrochemical Three Electrodes

Description

Working Principle:

Electrochemical Three-electrode

Detection Range:

0-100 Ppm

Extended Concentration:

200 Ppm

Bottom Current:

0-2.5 μA

Highlight:

4C3H3N-AS Gas Sensor

Electrochemical Three Electrodes Gas Sensor

114-190-120 Gas Sensor

4C3H3N-AS 114-190-120 Acrylonitrile Gas Sensor Electrochemical Three Electrodes

Zero drift (-20 to 50°C)	0-10 ppm
Sensitivity	60±20 nA/ppm (positive signal)
Response time	< 90 s
Repeatability	< ±2% signal value/month
Linearity	Linear to 200 ppm

Electrical

Resolution	1 ppm
Bias voltage	+300 mV
Recommended resistance	5-30 Ω

Physical properties

Weight	< 5 g
Orientation requirements	None

Work Environment

Intended Use	Suitable for most life safety detectors
Operating temperature range	-20 to 50°C
Operating pressure range	800-1200 mbar
Operating humidity range	15%-90% RH (non-condensing)

Warranty life

Recommended storage environment	In a sealed container at 0-20°C
Expected service life	In air 24 months
Storage period	Original packaging 6 months
Warranty period	12 months

4C3H3N-AS 114-190-120 Acrylonitrile Gas Sensor Electrochemical Three Electrodes 0
