4CH4S-DS 114-023-110 Methyl Mercaptan Sensor Electrochemical Three Electrodes

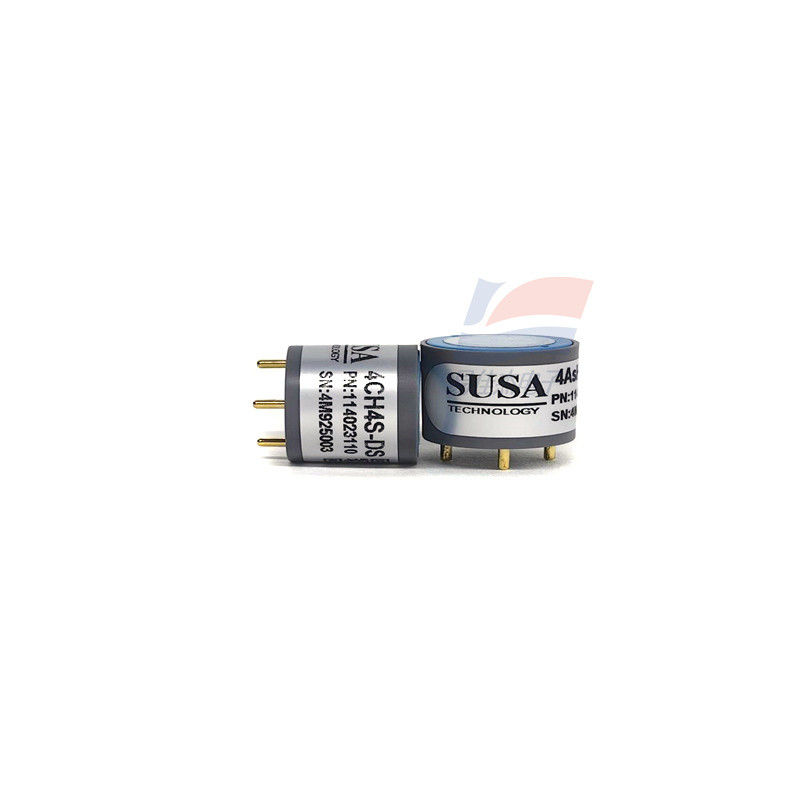

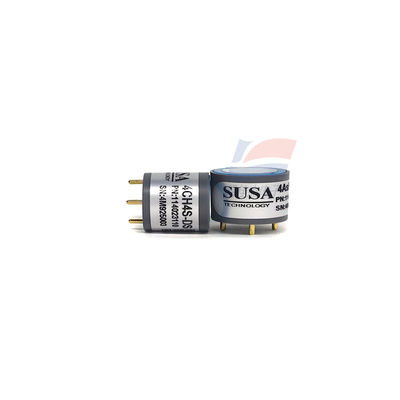

Large Image : 4CH4S-DS 114-023-110 Methyl Mercaptan Sensor Electrochemical Three Electrodes

Product Details:

Place of Origin:	China
Brand Name:	SUSA
Model Number:	4CH4S-DS 114-023-110

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Package
Delivery Time:	3-5workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	3000/pcs/month

Contact Now

4CH4S-DS 114-023-110 Methyl Mercaptan Sensor Electrochemical Three Electrodes

Description

Working Principle:

Electrochemical Three-electrode

Detection Range:

0-10 Ppm

Extended Concentration:

20 Ppm

Bottom Current:

< ±0.2 μA

Highlight:

Electrochemical Methyl Mercaptan Sensor

114-023-110 Methyl Mercaptan Sensor

4CH4S-DS Methyl Mercaptan Sensor

4CH4S-DS 114-023-110 Methyl Mercaptan Sensor Electrochemical Three Electrodes

Basic performance

Zero drift (-20 to 50°C) 0-0.6 ppm	-0.6 ppm
Sensitivity	700±150 nA/ppm (positive signal)
Response time	< 35 s
Repeatability	< ±2% signal value/month
Linearity	Linear to 20 ppm

Electrical

Resolution	0.1 ppm
Bias	0 mV (none)
Recommended resistance	5-30 Ω

Physical properties

Weight	< 5 g
Orientation requirements	None

Work Environment

Intended Use	Suitable for most life safety detectors
Operating temperature range	-40 to 50°C
Operating pressure range	800-1200 mbar
Operating humidity range	15%-90% RH (non-condensing)

Warranty life

Recommended storage environment	In a sealed container at 0-20°C
Expected service life	In air 24 months
Storage period	Original packaging 6 months
Warranty period	12 months

4CH4S-DS 114-023-110 Methyl Mercaptan Sensor Electrochemical Three Electrodes 0
