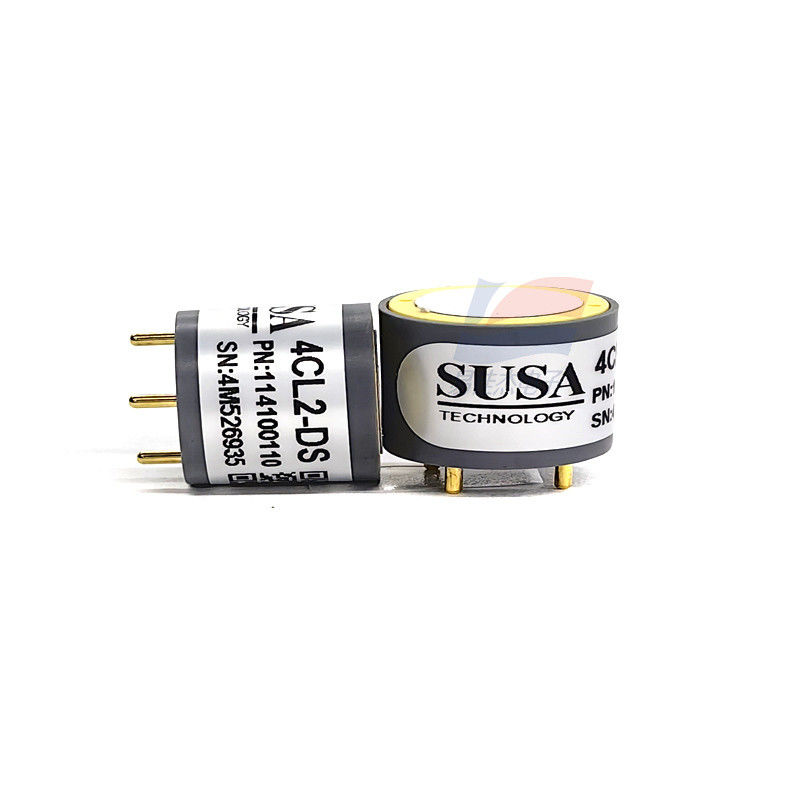

4CL2-DS Chlorine Gas Sensors Electrochemical Three Electrodes

Large Image : 4CL2-DS Chlorine Gas Sensors Electrochemical Three Electrodes

Product Details:

Place of Origin:	China
Brand Name:	SUSA
Model Number:	4CL2-DS

Payment & Shipping Terms:

Price:	Negotiable
Packaging Details:	Standard Package
Delivery Time:	3-5workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	3000/pcs/month

Contact Now

4CL2-DS Chlorine Gas Sensors Electrochemical Three Electrodes

Description

Detection Range:

0-50 Ppm

Maximum Load:

100 Ppm

Bottom Current:

< ±0.2 μA

Zero Drift (-20 To 50°C):

0-0.2 Ppm

Highlight:

Electrochemical Chlorine Gas Sensors

Three Electrodes Chlorine Gas Sensors

4CL2-DS Chlorine Gas Sensors

4CL2-DS Chlorine Gas Sensors Electrochemical Three Electrodes

Basic performance

Sensitivity	450±150 nA/ppm (negative signal)
Response time	< 60 s
Repeatability <	±2% of signal/month
Linearity	Linear to 100 ppm

Electrical

Resolution	0.1 ppm
Bias	0 mV (none)
Recommended resistance	5-30 Ω

Physical properties

Weight	< 5 g
Orientation requirements	None

Work Environment

Intended Use	Suitable for most life safety detectors
Operating temperature range	-40 to 50°C
Operating pressure range	800-1200 mbar
Operating humidity range	15%-90% RH (non-condensing)

Warranty life

Recommended storage environment	In a sealed container at 0-20°C
Expected service life	In air 24 months
Storage period	Original packaging 6 months
Warranty period	12 months

4CL2-DS Chlorine Gas Sensors Electrochemical Three Electrodes 0
