AQ 7NO2 Nitrogen Dioxide NO2 Sensor with Maximum Overload of 200 ppm and Accurate Output Signal of 400 ± 100 nA / ppm

Large Image : AQ 7NO2 Nitrogen Dioxide NO2 Sensor with Maximum Overload of 200 ppm and Accurate Output Signal of 400 ± 100 nA / ppm

Product Details:

Place of Origin:	UK
Model Number:	AQ+7NO2

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Paper box
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000pcs

Contact Now

AQ 7NO2 Nitrogen Dioxide NO2 Sensor with Maximum Overload of 200 ppm and Accurate Output Signal of 400 ± 100 nA / ppm

Description

Output Signal:	400 ± 100 NA / Ppm	Typical Baseline Range (pure Air):	+/- 100 NA (Net S-A Baseline)
T90 Response Time:	< 60 Seconds	Measurement Range:	0 - 20 Ppm
Maximum Overload:	200 Ppm	Linearity:	Linear
Highlight:	200 ppm Nitrogen Dioxide NO2 Sensor , AQ 7NO2 Nitrogen Dioxide NO2 Sensor

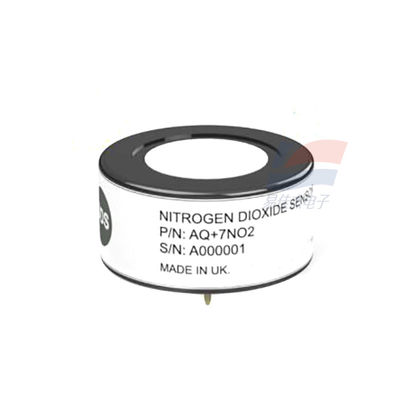

AQ+7NO2 Nitrogen Dioxide (NO2) Sensor

Introduction The AQ+7NO2 is a 4 Electrode NO2 sensor designed for use in environmental air quality applications

Key Features: 4th electrode for improved baseline v temperature performance Internal filter for the removal of H2S and O3

Repeatability	< ±2% NO2 equivalent
Recommended Load Resistor	20 ohms
Resolution (Electronics dependent)	< 10 ppb typical
Temperature Range Continuous	-30oC to +50oC
Pressure Range	800 to 1200 mbar
Operating Humidity Range	15% to 90% RH

AQ 7NO2 Nitrogen Dioxide NO2 Sensor with Maximum Overload of 200 ppm and Accurate Output Signal of 400 ± 100 nA / ppm 0
