AQ+7H2S Hydrogen Sulphide (H2S) Sensor Use In Environmental Air Quality Applications

Large Image : AQ+7H2S Hydrogen Sulphide (H2S) Sensor Use In Environmental Air Quality Applications

Product Details:

Place of Origin:	UK
Model Number:	AQ+7H2S

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Paper box
Delivery Time:	3-5work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	5000pcs

Contact Now

AQ+7H2S Hydrogen Sulphide (H2S) Sensor Use In Environmental Air Quality Applications

Description

Output Signal:	1700 ± 400 NA / Ppm	Typical Baseline Range (pure Air):	+/- 200 NA (Net S-A Baseline)
T90 Response Time:	< 60 Seconds	Measurement Range:	0 - 25 Ppm
Maximum Overload:	100 Ppm	Linearity:	Linear
Highlight:	H2S Hydrogen Sulphide Sensor , AQ+7H2S Hydrogen Sulphide Sensor

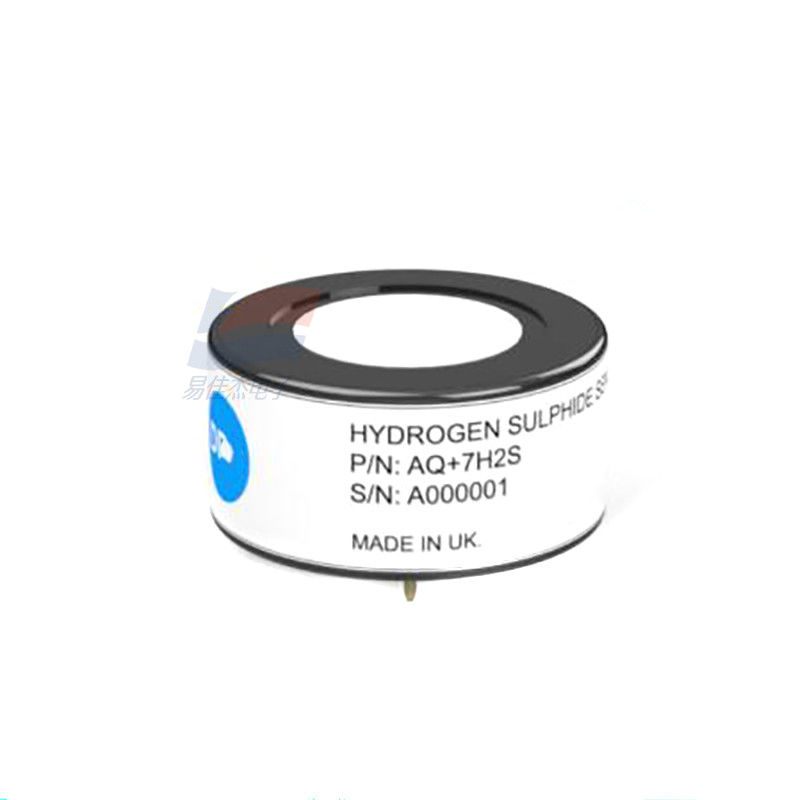

AQ+7H2S Hydrogen Sulphide Sensor (H2S)

Introduction The AQ+7H2S is a 4 Electrode H2S sensor designed for use in environmental air quality applications

Key Features: 4th electrode for improved baseline temperature performance

Repeatability	< ±2% H2S equivalent
Recommended Load Resistor	20 ohms
Resolution (Electronics dependent)	< 10 ppb typical
Temperature Range Continuous	-30oC to +50oC
Pressure Range	800 to 1200 mbar
Operating Humidity Range	15% to 90% RH
Output signal	1700 ± 400 nA / ppm
Typical Baseline Range (pure air)	+/- 200 nA (Net S-A Baseline)

AQ+7H2S Hydrogen Sulphide (H2S) Sensor Use In Environmental Air Quality Applications 0
