Product Details:
|
| Measuring Range: | 0-100% O2 | Signal Output: | 10-14 MV |
|---|---|---|---|
| Response Time 90%: | Response Time 90% | Accuracy Full Scale: | + 1% |
| Highlight: | PSR11-75-KE7 Oxygen Sensor,PSR11-75-KE7 Battery Type Oxygen Sensor,Breathing Machine Battery Type Oxygen Sensor |
||

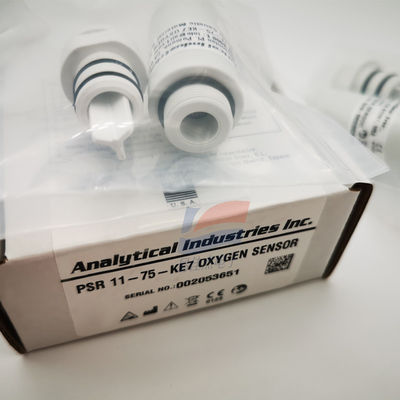

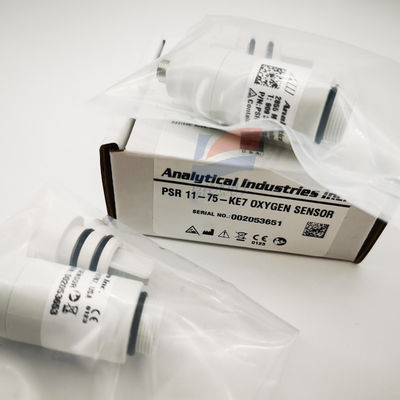

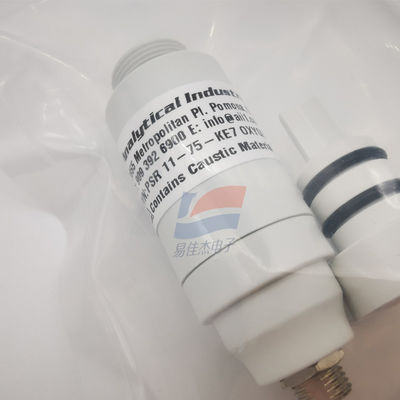

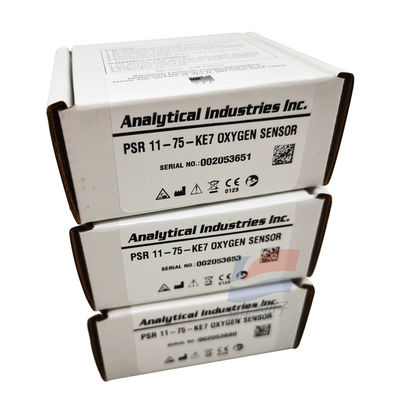

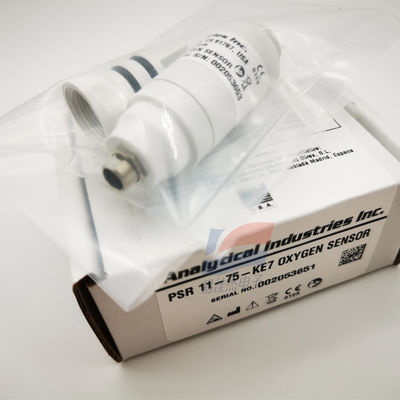

PSR11-75-KE7 Battery Type Oxygen Sensor Use For Breathing Machine
Advanced galvanic type % oxygen sensors with excellent stability and accuracy under stringent applications.
All % oxygen sensors are subjected to the most extensive stability test, output in air, 30” of water column
pressure test and stability at 100% oxygen.
The widest range of oxygen sensors offered by Analytical Industries, Inc. are “Made in USA”
Datasheet
| Accuracy FS Over Operating | ± 5% |
| Drift | < 1% |
| Linearity | ±1% |
| Humidity non-condensing | 0-99% RH |
| Temperature Coefficient | Compensated |
| Operating Temperature | 0-45°C |
| Operating Pressure Constant | 5-30 PSIG |
| Flow Rate | .1-10 LPM |
| Expected Life | 60 Months |
| Storage | 0 to 40°C |
| Warranty | 24 Months |
| Recommended Storage | < 6 months |
