GS+7SO2 Sulfur Dioxide Sensor SO2 370 ± 70 NA / Ppm Output Signal 30 Seconds Response Time

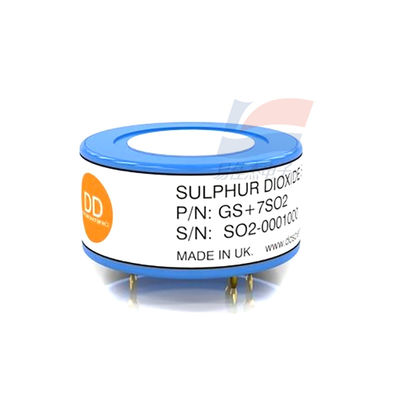

Large Image : GS+7SO2 Sulfur Dioxide Sensor SO2 370 ± 70 NA / Ppm Output Signal 30 Seconds Response Time

Product Details:

Place of Origin:	UK
Model Number:	GS+7SO2

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Paper box
Delivery Time:	3-5work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000pcs

Contact Now

GS+7SO2 Sulfur Dioxide Sensor SO2 370 ± 70 NA / Ppm Output Signal 30 Seconds Response Time

Description

Output Signal:	370 ± 70 NA / Ppm	Typical Baseline Range (pure Air):	±0.5 Ppm SO2 Equivalent
T90 Response Time:	< 30 Seconds	Measurement Range:	0 - 100 Ppm
Maximum Overload:	500 Ppm	Linearity:	Linear
Highlight:	GS+7SO2 Sulfur Dioxide Sensor , 30 Seconds Response SO2 Sensor

GS+7SO2 Sulfur Dioxide Sensor (SO2)

Introduction: The GS+7SO2 is a premium high quality robust SO2 sensor, ideal for use in fixed gas detectors.

Key Features: High stability, fast response and recovery, robust environment performance.

Repeatability	< ±2% SO2 equivalent
Recommended Load Resistor	10 ohms
Resolution (Electronics dependent)	0.5 ppm typical
Temperature Range Continuous	-30oC to +50oC
Pressure Range	800 to 1200 mbar
Operating Humidity Range	15% to 90% RH
Long Term Output Drift	< 20% per annum
Recommended Storage Temp	0oC to 20oC

GS+7SO2 Sulfur Dioxide Sensor SO2 370 ± 70 NA / Ppm Output Signal 30 Seconds Response Time 0
