Product Details:
|
| Membrane Thermal Time Constant (Tm): | <5 Ms | Gas Exchange Time Constant (Td)(Diffusion Time Constant): | <100 Ms |
|---|---|---|---|
| Drift |xε{m,t}; Yε{1,2}(Rm And Rt): | 0.001%week | Diffusion Chamber Structure Volume (Gas Chamber 1): | 0.2mm3 |
| Highlight: | Diffusion Chamber Structure Gas Concentration Sensor,0.2mm3 Gas Concentration Sensor |
||

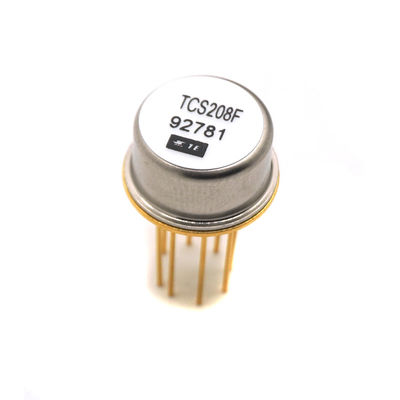

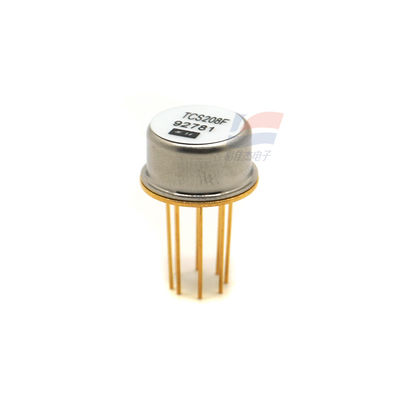

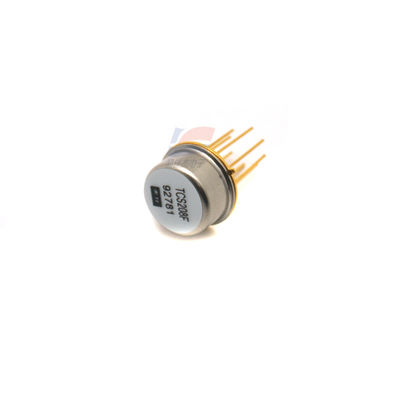

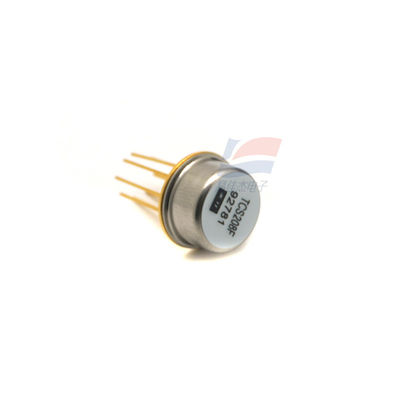

TCS208F gas thermal conductivity sensor
The TCS208F gas thermal conductivity sensor adopts the first
A concentration-type sensor produced by advanced MEMS processing technology, which responds based on the different thermal conductivity coefficients of the component to be measured and the reference gas. The product has the advantages of a wide detection range, high reliability, convenient installation and simple maintenance. It can be widely applied to the detection of gas components such as natural gas, CH4, H2, CO2, CO, SF6, Xe, He, NH3, etc., and can also be used to measure very small changes in gas volume.
Characteristics:
High measurement accuracy
High sensitivity
Integrated temperature compensation with small drift
Small in size and fast in response speed
It can measure the volume of tiny gases
High cost performance

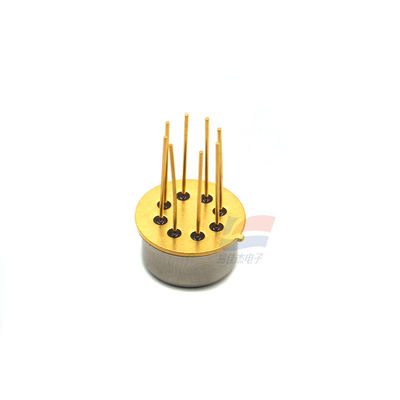

TO8 package, with strong impact resistance
Application:
Analysis of the composition and sources of natural gas
Analysis of the composition and sources of natural gas
The content of He or Xe in the air mixture
The H2 content in the circulating gas of hydrogen-cooled units in power plants
The CO2 content in the exhaust gas of industrial kilns and boilers
The ratio of NH3 synthesis to supplementary gas in a fertilizer plant
| Installation space | 100 mm3 |
| Heating power P(Rm1 + Rm2) | 30 mW |
| Diaphragm temperature Tm | 180 ℃ |
| Heating power P (Rm1 + Rm2) | 5 mW |
