Product Details:
|
| Heating Power: | 30mV | Membrane Temperature: | 180℃ |
|---|---|---|---|
| Ambient Temperature: | -20 To 85℃ | Resistances Rm: | 92-115Ω |
| Highlight: | Ambient Temperature Range Thermal Conductivity Sensor,30mV Heating Power Thermal Conductivity Sensor,TCS208F Thermal Conductivity Sensor |
||

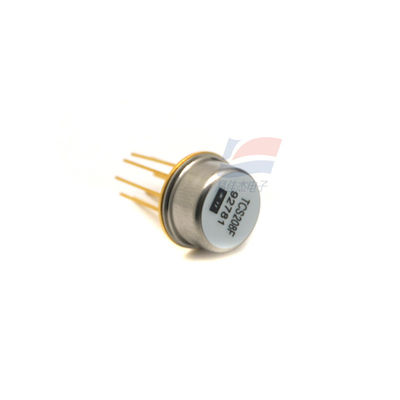

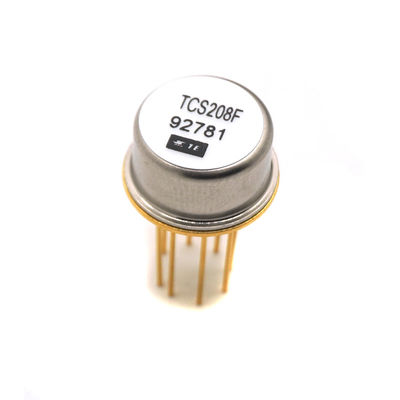

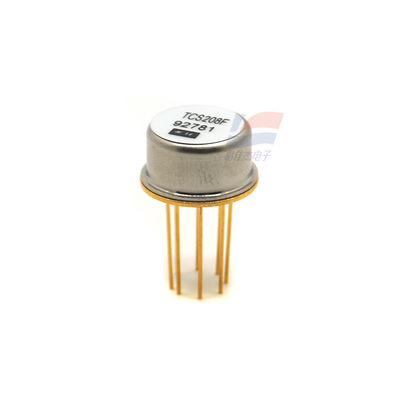

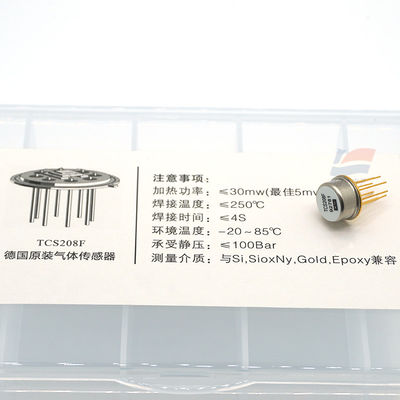

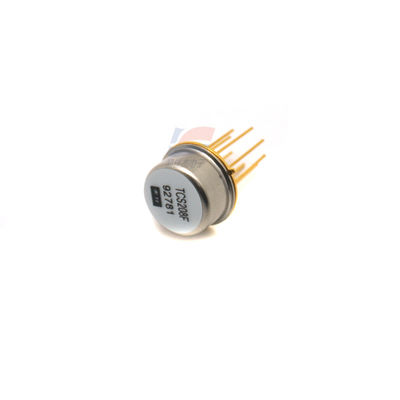

TCS208F Thermal Conductivity Sensor Short Time Constants
1. Thermal conductivity sensor for gases
2. Silicon micromechanics
3. Very small dimensions
4. Short time constants
5. Measurement of very small gas volumes
6. Gas exchange by diffusion
FEATURES
1. Measuring hydrogen content thermal conductivity
2. Analyzing binary gas by evaluating
3. Determination of CO2 vs. Methane
4. Discrimination of natural gas
5. Measurement of Helium or Xenon contents
APPLICATIONS
1. Industrial application
2. Monitoring of gas characteristic
3. Determining gas concentration
4. Landfill or digestor gas
5. Different origin gas or compositions gas
| Geometry factor | 3.6mm |
| Membrane thermal time constant | ＜5ms |
| Time constant for gas exchange | <100ms |
| Surrounding volume to be kept clear | 100mm3 |
