Product Details:
|
| Operating Temperature: | -10℃ To +40℃ | Storage Temperature: | -30℃ To +50℃ |
|---|---|---|---|
| Output Type: | RS485 Modbus RTU | Oxygen Measurement Range: | 0- 1000 Ppm (Vol), 0-1.2mbar (ppO2) |
| Response Time: | T90 <30 Seconds | Lifespan: | >5 Years |
| Highlight: | Any Oxygen Concentration Micro-oxygen Transmitter,LOX-TRACE-1000-BLX Micro-oxygen Transmitter,Fluorescent Micro-oxygen Transmitter |
||
Product Description:

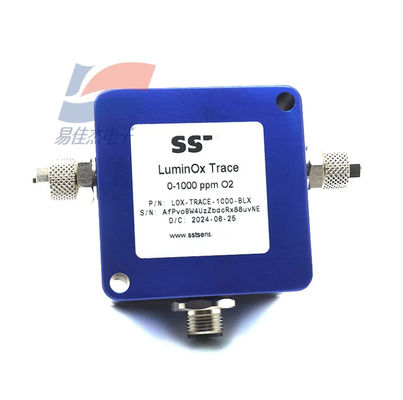

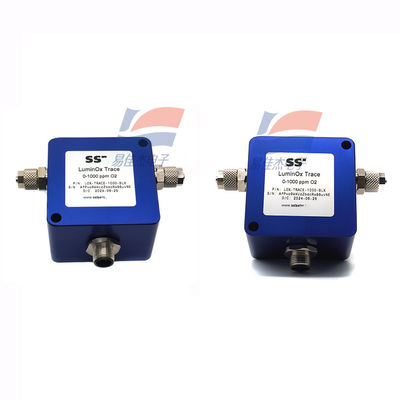

LOX-TRACE-1000-BLX Is A Fluorescent Micro-oxygen Transmitter That Can Be Exposed To Any Oxygen Concentration Environment
Features:
Product Introduction
I. Product Features of the British SST fluorescent trace oxygen transmitter LOX-TRACE-1000-BLX that can be exposed to any oxygen concentration environment:
It can operate at any oxygen concentration without damaging the sensor
2. It has a high degree of selectivity and sensitivity to oxygen
3. Long-life, non-consumable technology - no need to be stored in an inert gas environment, low power consumption, and high precision
4. Fast response speed and short purification time
5. It is directly connected to the controller via the RS485 interface
6. Factory Calibration - Users can calibrate by themselves
Ii. Product advantages of the British SST fluorescent trace oxygen transmitter LOX-TRACE-1000-BLX that can be exposed to any oxygen concentration environment:
1. Compact in size, with a flowable shell and a sealed base
2. It contains no harmful substances and complies with RoHS & REACH
3. Insensitive to pressure fluctuations
4. It can be used in vacuum applications
Iii. Electrical and Environmental Characteristics of the British SST fluorescent trace oxygen transmitter LOX-TRACE-1000-BLX that can be exposed to any oxygen concentration environment:
Supply voltage (Vs) : 8-30Vdc
Supply current (Is) <30mA, <60mA (peak)
Output type: RS485 Modbus RTU
Operating temperature: -10℃ to +40℃
Storage temperature: -30℃ to +50℃
Humidity, dryness and clean gas
The atmospheric pressure range is 260 to 1260mbar
Iv. Performance Parameters of the British SST fluorescent trace oxygen transmitter LOX-TRACE-1000-BLX that can be exposed to any oxygen concentration environment:
Oxygen measurement range: 0- 1000 ppm (Vol), 0-1.2mbar (ppO2)
Response time T90 <30 seconds (typical value), purification time ≤30 minutes
Accuracy/resolution <2%FS/1ubar
The temperature accuracy/resolution is for reference only /0.1℃
Pressure accuracy/resolution ± 5mbar/1mbar (Lox-02)
O2% accuracy/resolution is determined by ppO2 and pressure accuracy /1ppm
Lifespan >5 years
Specifications:
| Supply voltage (Vs) | 8-30Vdc |
| Supply current (Is) | <30mA, <60mA (peak) |
| Output type | RS485 Modbus RTU |
| Operating temperature | -10℃ to +40℃ |
