Product Details:
|
| Measurement Range: | 0- 100% | Working Life: | 6 Years In The Air |
|---|---|---|---|
| Output: | 13 To 17 MV | Resolution: | 0.1% |
| Temperature Range: | 0℃ To 40℃ | Pressure Range: | 750 To 1250 HPa |
| Highlight: | German Medical Oxygen Sensor,M-03 Oxygen Sensor,M-04 Oxygen Sensor |
||
Product Description:

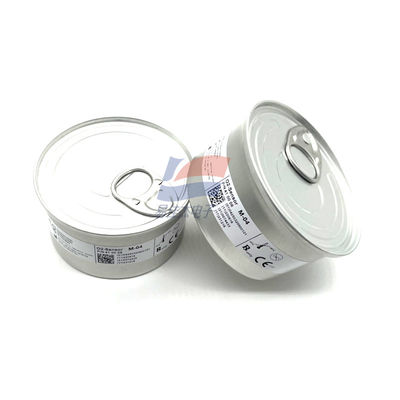

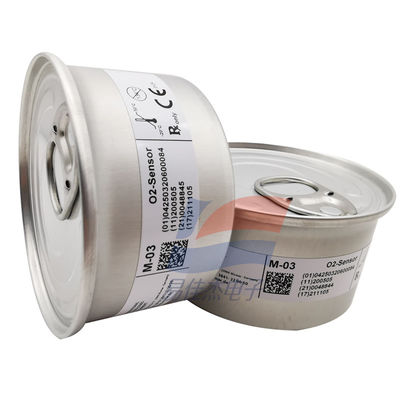

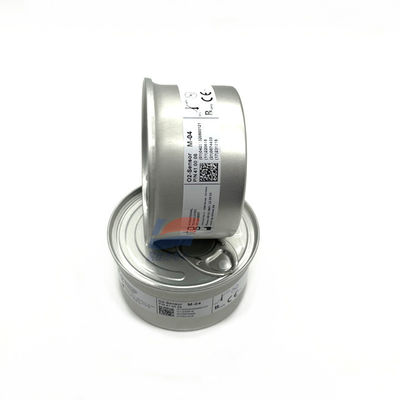

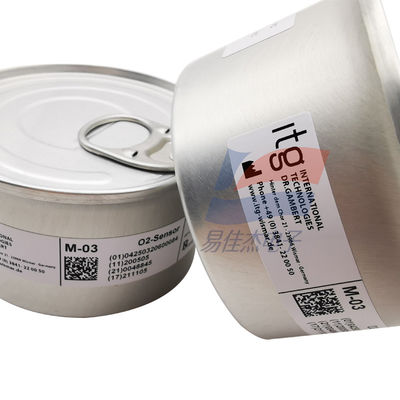

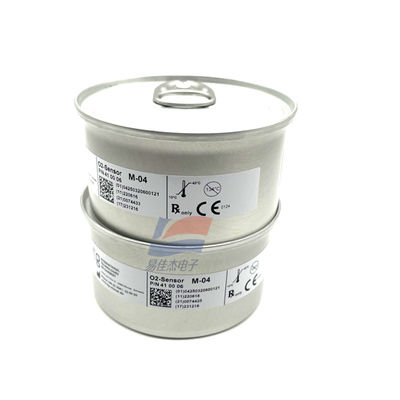

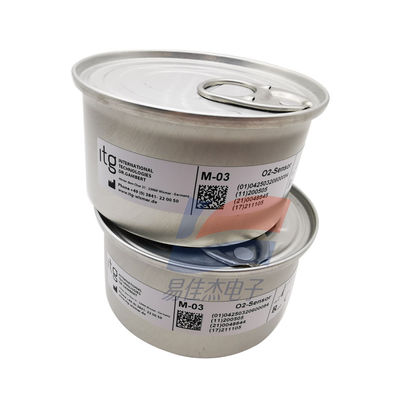

M-03 M-04 German Medical Oxygen Sensor Oxygen Battery
Features:
M-03 German Oxygen Sensor Oxygen battery *
Measurement range: 0- 100%
Working life: 6 years in the air
Output: 13 to 17 mV
Resolution: 0.1%
Temperature range: 0℃ to 40℃
Pressure range: 750 to 1250 hPa
Response time (T 90) : < 12 seconds
Humidity range: 0- 100% RH (resistant to high humidity)
Zero-point output (* N2, 20℃) : < 0.2 mV
Large zero drift (20℃to 40℃) : 1%
Long-term drift: <1% per month
Recommended load value: >10KΩ
Linearity output: 2%
Repeatability: 1%
Storage life: 6 months (in container)
Interface: 3.5mm mono jack, with temperature compensation;
Medical oxygen sensors (O2 sensors, oxygen batteries, oxygen probes, oxygen electrodes)
M-04 German Oxygen Sensor Oxygen battery *
Measurement range: 0- 100%
Working life: 6 years in the air
Output: 13 to 17 mV
Resolution: 0.1%
Temperature range: 0℃ to 40℃
Pressure range: 750 to 1250 hPa
Response time (T 90) : < 12 seconds
Humidity range: 0- 100% RH (resistant to high humidity)
Zero-point output (* N2, 20℃) : < 0.2 mV
Large zero drift (20℃to 40℃) : 1%
Long-term drift: <1% per month
Recommended load value: >10KΩ
Linearity output: 2%
Repeatability: 1%
Storage life: 6 months (in container)
Port: 3-pin socket with temperature compensation;
Specifications:
| Large zero drift (20℃to 40℃) | 1% |
| Long-term drift | <1% per month |
| Recommended load valu | >10KΩ |
| Storage life | 6 months (in container) |
